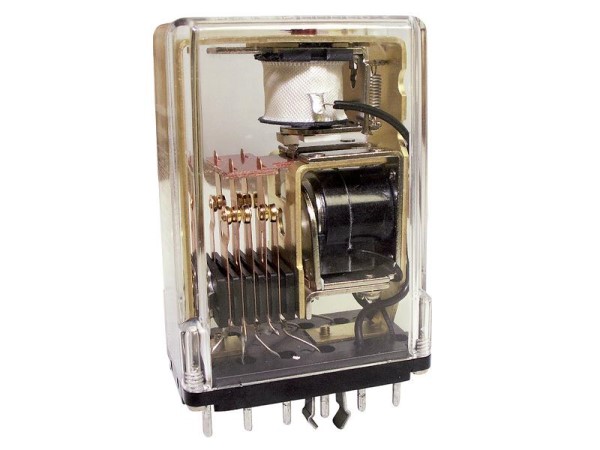

STRUTHERS-DUNN 255BXBPLM24VDC Industrial Latching Relay
This 24 V DC latching relay features a plug-in 12-pin mounting configuration with two Form A (DPST-NO) and two Form B (DPST-NC) contacts, supporting up to 10 Amps. It operates with two coils that remain in their last state without continuous power, ideal for applications needing reliable latching performance. Manufactured with robust materials, it offers high dielectric strength, low contact resistance, and a compact design suitable for industrial automation and control systems. Designed for durability, it provides excellent electrical and mechanical life expectancy for demanding environments.
STRUTHERS-DUNN 255BXBPLM24VDC Industrial Latching Relay Specifications:
- Contact Configuration: 2 Form A (DPST-NO), 2 Form B (DPST-NC)
- Contact Material: Silver Alloy Gold Diffused
- Contact Rating: 10 Amp / 5 Amp resistive, 28 VDC; 120/240VAC resistive, 10 Amp
- Coil Voltage: 6V, 12V, 24V, 48V, 115-125V DC / AC (add VAC or VDC to specify)
- Coil Power: 1.8W DC, 5VA AC
- Dropout Voltage: 10% of nominal
- Operate Time: Max 25ms; Release Time: Max 20ms
- Dielectric Strength: 1500Vrms across open contacts and between insulated points
- Insulation Resistance: Minimum 100 Megohms at 500VDC
- Operating Temperature: -20°C to 60°C; Storage Temperature: -40°C to 105°C
- Life Expectancy: Electrical 100,000 operations; Mechanical 10,000,000 operations
- Physical Dimensions: 4.52 inches (114.8 mm) width, 3.72 inches (94.4 mm) height, suitable for industrial enclosures
- Enclosure: Clear Polycarbonate cover; optional features include permanent magnet blowout, indicator lamp, manual actuator
- Mounting: Plug-in 12-pin configuration compatible with standard sockets
- Weight: 11.8 oz (300 grams)
Buy the Buy Struthers-Dunn 255BXBPLM24VDC Part Number 255BXBPLM24VDC Online
Enhance your control systems with the durable 24 V DC latching relay, featuring plug-in mounting, dual contact configurations, and high current support. It offers reliable operation with low power consumption, excellent dielectric strength, and extended life expectancy. Ideal for automation, industrial machinery, and control panels, this relay ensures seamless switching performance and long-term reliability. Purchase online today to leverage its robust design and superior electrical characteristics for your demanding control needs.
Buy Struthers-Dunn 255BXBPLM24VDC now and experience unmatched reliability and performance in industrial control applications.
Frequently Asked Questions
Where can I buy STRUTHERS-DUNN 255BXBPLM24VDC?
You can click on the BUY or RFQ button to purchase 255BXBPLM24VDC from an authorized STRUTHERS-DUNN distributor.
How do I troubleshoot issues or seek technical support for part 255BXBPLM24VDC?
You can download the 255BXBPLM24VDC datasheet or visit the STRUTHERS-DUNN website for support.
Who is the manufacturer of 255BXBPLM24VDC?
STRUTHERS-DUNN
