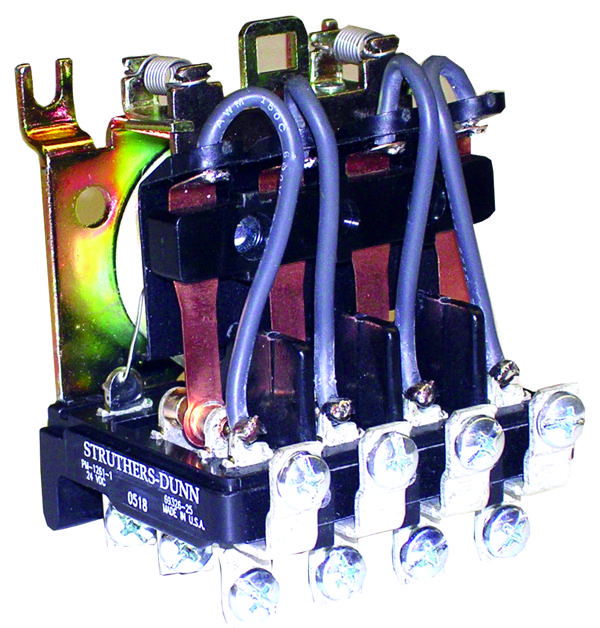

STRUTHERS-DUNN PM17AY120 Power Relay
This contactor features a 110/120 VAC coil voltage and a 4PDT (4 Form C) contact configuration, supporting up to 35 Amps and designed for base mounting. It is ideal for automation and control systems, offering reliable switching of resistive loads such as motors at 240VAC and resistive loads at 120/240VAC. The relay has a robust construction, with a coil power of 14VA, a drop-out voltage of 10% of nominal, and a dielectric strength of 1500 VRMS across open contacts. It provides a long life expectancy of 100,000 electrical operations and 2,000,000 mechanical operations, ensuring dependable performance in demanding environments.
STRUTHERS-DUNN PM17AY120 Power Relay Specifications:
- Contacts: 4PDT, Silver Alloy
- Contact Material: Silver Alloy
- Contact Rating: 35 Amp at 240VAC, 20 Amp at 28VDC, 1.5Hp
- Coil Power: 14VA / 4.4W
- Coil Voltage: 110/120 VAC
- Drop-out Voltage: 10% of nominal
- Dielectric Strength: 1500 VRMS across open contacts
- Insulation Resistance: 1000 megohms @ 500VAC
- Temperature Range: -34 to 74°C (-30 to 165°F)
- Enclosure: Base mount, optional dust cover (Part Number 35D203)
- Weight: 14.90 oz (379 grams)
- Life Expectancy: 100,000 electrical, 2,000,000 mechanical operations
Buy the Struthers-Dunn Series PM Contact Relay: PM17AY120
Enhance your automation systems with the reliable Power Relay featuring a 4PDT contact configuration supporting up to 35 Amps at 240VAC. Designed for durability, it offers long lifespan, high dielectric strength, and excellent insulation resistance, making it ideal for industrial use. Easily mounted and available with screw terminals or quick connect options, this relay ensures seamless switching of resistive loads and motors. Purchase online today to benefit from high-quality control components that deliver consistent, dependable operation in demanding environments.
Buy Struthers-Dunn PM17AY120 contact relay now and experience unmatched reliability and performance for automation and control applications.
