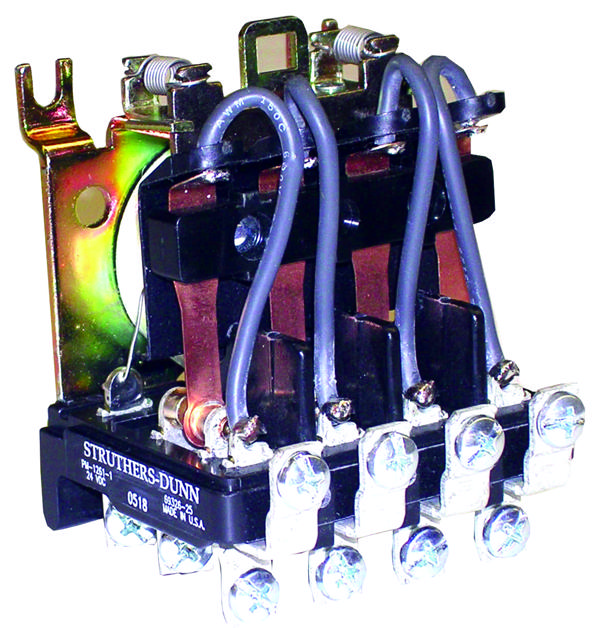

STRUTHERS-DUNN PM17AY240 Power Contactor
This contactor with a 220/240 VAC coil features a 4PDT contact configuration, rated for 35 amps and designed for base mounting. It offers reliable switching with a single side stable operation, suitable for industrial automation and electrical control systems. The relay is capable of switching up to 1.5 horsepower motors at 240VAC, with a contact resistance of 100 milliohms max at 6VDC. Its robust construction ensures durability in various operating environments, meeting electrical standards and providing long-term performance.
STRUTHERS-DUNN PM17AY240 Power Contactor Specifications:
- Contact Configuration: 4PDT (4 form C)
- Contact Material: Silver Alloy
- Contact Rating: 35 Amp at 120/240VAC Resistive, 28VDC Resistive, 1.5Hp Motor
- Coil Voltage: 220/240 VAC
- Coils Available: 12V, 24V, 120V, 240V AC; 12V, 24V, 115-125V, 240V DC
- Nominal Coil Power: 14VA 4.4W
- Drop-out Voltage: 10% of nominal
- Operate Time: 40ms
- Release Time: 30ms
- Dielectric Strength: 1500 VRMS across open contacts, 2200 VRMS between insulated points
- Insulation Resistance: 1000 megohms at 500VAC
- Temperature Range (operating): -34 to 74°C (-30 to 165°F)
- Temperature Range (storage): -40 to 105°C (-40 to 221°F)
- Life Expectancy: 100,000 electrical operations, 2,000,000 mechanical operations
- Enclosure: Base mounting, optional dust cover
- Weight: 14.90 oz (379 grams)
Buy the Struthers-Dunn Series PM Contactors: PM17AY240
Purchase the Struthers-Dunn Power Contactor online today for your electrical control needs. Designed with a 4PDT contact configuration, rated for 35 amps at 220/240VAC, it ensures reliable switching performance in industrial automation. Easy to install with screw terminals or quick connects, this contactor is built for durability and efficiency. Whether controlling motors or switching resistive loads, this high-quality relay offers long-term performance and safety, making it a top choice for engineers and technicians seeking dependable electrical components.
Get Struthers-Dunn PM17AY240 today—built for industrial automation, reliable switching, and long-lasting durability.
