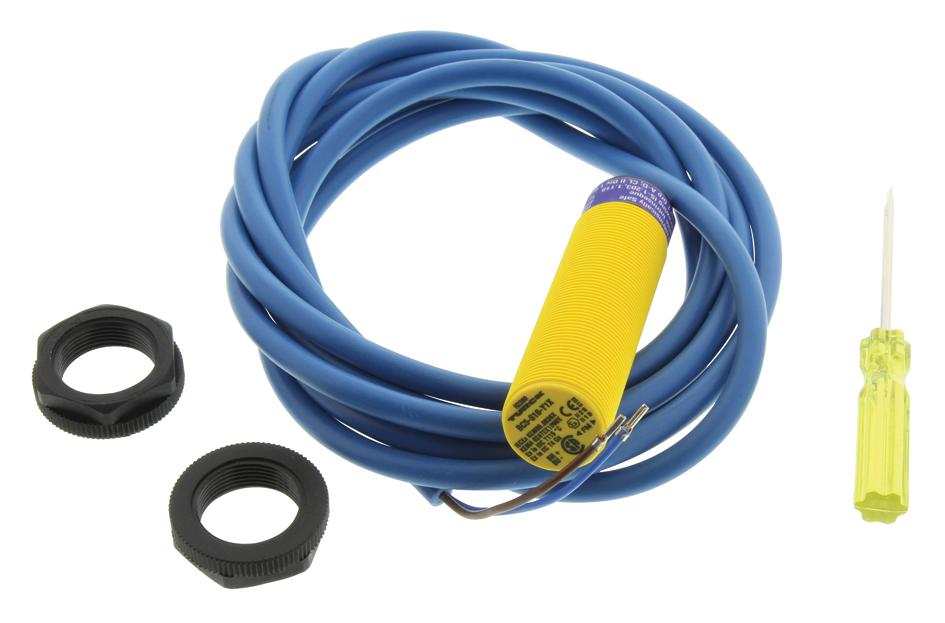

Turck BC5S18Y1X Capacitive Proximity Sensor
The capacitive sensor BC5-S18-Y1X is designed for precise non-contact detection of electrically conductive and non-conductive metal objects, suitable for explosion hazardous areas and safety-critical systems up to SIL2. It features a threaded M18 x 4 barrel, plastic housing with PA12-GF30, and fine adjustment via potentiometer. The sensor operates within -25°C to +70°C, with a rated switching distance of 5mm flush and 7.5mm non-flush. It has robust electrical compatibility, with a 2-wire NAMUR output, cable connection, and adherence to safety standards such as ATEX, IECEx, and SIL2. Compact and reliable, it is ideal for industrial automation in hazardous environments.
Turck BC5S18Y1X Capacitive Proximity Sensor Specifications:
- Housing material: Plastic, PA12-GF30
- Active area diameter: 18 mm
- Threaded barrel: M18 x 4
- Rated switching distance (flush): 5 mm
- Rated switching distance (non-flush): 7.5 mm
- Operating temperature: -25°C to +70°C
- Voltage: Nom. 8.2 VDC
- Current consumption: non-actuated <1.2mA, actuated 22.1mA
- Electrical connection: Cable, 2x 0.34 mm², 2 m PVC
- Protection class: P67
- Vibration resistance: 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- Admissible pressure on front cap: <6 bar
- Max tightening torque: 2 Nm
- Approvals: ATEX, IECEx, SIL2, CSA, FM, GOST, KOSHA, INMETRO
- Electrical specifications: Internal capacitance 150 nF, inductance 150 pH
- Dimensions: Length 74 mm, active area diameter 18 mm
- Ingress protection: IP67
Buy the Turck Series BC5 Capacitive: BC5-S18-Y1X
Order the Turck BC5-S18-Y1X capacitive proximity sensor online today to enhance your industrial automation system's safety and efficiency. Designed for non-contact detection of metal objects, it offers robust explosion-proof features, adjustable sensitivity via potentiometer, and reliable NAMUR switching output. Its compact, IP67-rated plastic housing ensures durability in harsh conditions, with quick installation through threaded M18 barrel and cable connection. Perfect for hazardous zones, this sensor guarantees dependable performance, safety compliance, and seamless integration into safety-related or SIL2 systems, making your process safer and more efficient.
Get Turck BC5-S18-Y1X today—built for precision and long-lasting durability in hazardous environments.
