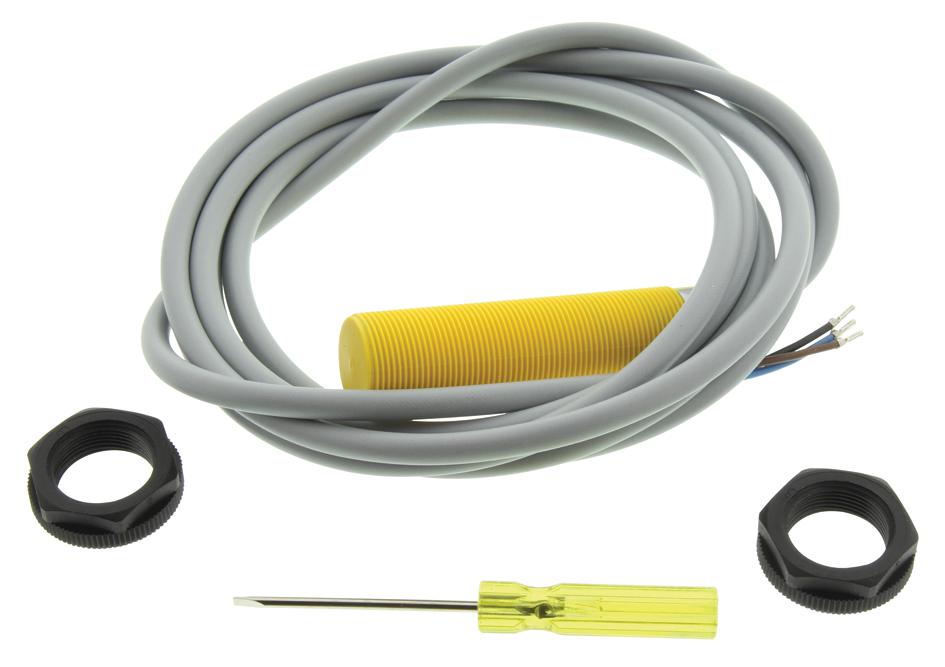

Turck BCF5S18RP4XS90 Capacitive Sensor
The capacitive sensor BCF5-S18-RP4X/S90 is designed for non-contact detection of electrically conductive and non-conductive metals. It features a threaded M18 x 14 housing, is made of PA12-GF30 plastic, and offers fine adjustment via potentiometer. The sensor provides increased EMI protection and is suitable for highly viscous media. It operates on 10 to 65 VDC with NC PNP output, includes a cable connection, and has a sensing distance of 5mm both flush and non-flush. It’s ideal for industrial automation requiring precise and wear-free metal detection.
Turck BCF5S18RP4XS90 Capacitive Sensor Specifications:
- Housing Material: PA12-GF30 plastic
- Active Area Material: PA12-GF30, yellow
- Threaded Barrel: M18 x 14
- Sensing Distance: 5mm (flush and non-flush)
- Operation Voltage: 10...65 VDC, 10...30 VDC (China)
- Hysteresis: 2.20%
- Temperature Range: -25°C to 470°C
- Residual Ripple: <10%U
- Rated Operational Current: <200mA
- Residual Current: <0.1mA
- Switching Frequency: 0.1 kHz
- Protection Class: P67
- Vibration Resistance: 55Hz (1mm)
- Shock Resistance: 30g (11ms)
- Electrical Connection: Cable, 3-wire, NC PNP
- Maximum Tightening Torque: 2Nm
- Max. Pressure on Front Cap: <6 bar
- Approval: UL
- Dimensions: Length 74mm
- Active Area Diameter: 18mm
Buy the Turck BCF5-S18-RP4X/S90 – Reliable Capacitive Sensor for Industrial Applications
Purchase the Turck capacitive sensor BCF5-S18-RP4X/S90 online today. Engineered for industrial applications, it features a threaded M18 housing, 5mm sensing distance, and PNP NC output. Its enhanced EMI protection ensures reliable operation even in high-frequency environments. The sensor’s robust plastic construction and adjustable sensitivity via potentiometer make it ideal for detecting conductive and non-conductive metals. Easy cable connection, UL approval, and compact dimensions allow seamless integration into automation systems. Reliable, wear-free detection ensures long-term performance and process efficiency.
Get Turck BCF5-S18-RP4X/S90 today—built for precision, durability, and reliable non-contact metal detection in industrial environments.
Frequently Asked Questions
Where can I buy Turck BCF5S18RP4XS90?
You can click on the BUY or RFQ button to purchase BCF5S18RP4XS90 from an authorized Turck distributor.
How do I troubleshoot issues or seek technical support for part BCF5S18RP4XS90?
You can download the BCF5S18RP4XS90 datasheet or visit the Turck website for support.
Who is the manufacturer of BCF5S18RP4XS90?
Turck
