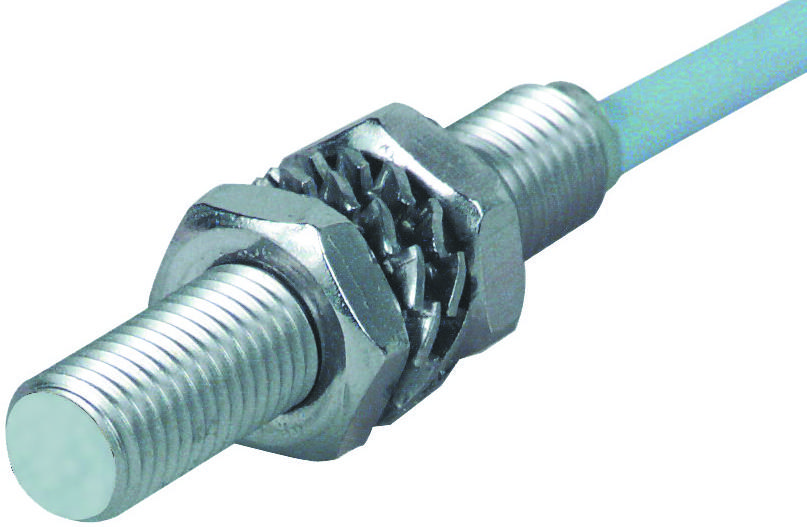

Turck BI1EH04AP6X Inductive Sensor
The BI 1-EH04-AP6X is an inductive proximity switch with a 3-wire PNP normally open contact. It detects metal objects contactlessly and wear-free by generating a high-frequency electromagnetic AC field that interacts with metal targets. The sensor uses an RLC circuit with a ferrite coil to produce this field, housed in a stainless steel housing made of 1.4427 SO material. It features cyclic short-circuit, wire breakage, and reverse polarity protection, with a yellow LED indicator for switching status. Suitable for flush mounting, it has a 4mm diameter smooth barrel, 2-meter PUR cable, and IP67 rating, ideal for industrial automation and metal detection.
Turck BI1EH04AP6X Inductive Sensor Specifications:
- Housing Material: Stainless steel 1.4427 SO
- Active Area Diameter: 4 mm
- Operation Voltage: 10...30 VDC
- Residual Ripple: <10%U
- Rated Operational Current: 100 mA
- Protection Class: IP67
- Switching Frequency: 3 kHz
- Temperature Range: -28...470°C
- Vibration Resistance: 55 Hz (1 mm)
- Shock Resistance: 30 g (11 ms)
- Cable Length: 2 meters
- Cable Type: PUR, 3x 0.14 mm
- Dimensions: Length 30 mm, smooth barrel
- Output: NO contact, PNP
- Additional Protections: Short-circuit, wire breakage, reverse polarity
- LED Indicator: Yellow for switching state
Buy the Turck BI1EH04AP6X – Reliable Inductive Sensor for Industrial Applications
Order the Turck BI1EH04AP6X inductive sensor online today for efficient metal detection in industrial settings. This high-performance device features contactless detection, stainless steel housing, a 4mm sensing face, IP67 protection, and a 2-meter cable for versatile installation. With built-in short-circuit, wire breakage, and reverse polarity protections, it ensures reliable operation. Ideal for automation, manufacturing, and metal processing applications, the sensor guarantees durability and consistent performance in harsh environments. Purchase now for seamless integration into your machinery.
Get Turck BI1EH04AP6X today—built for precision and long-lasting durability in metal detection and automation systems.
Frequently Asked Questions
Where can I buy Turck BI1EH04AP6X?
You can click on the BUY or RFQ button to purchase BI1EH04AP6X from an authorized Turck distributor.
How do I troubleshoot issues or seek technical support for part BI1EH04AP6X?
You can download the BI1EH04AP6X datasheet or visit the Turck website for support.
Who is the manufacturer of BI1EH04AP6X?
Turck
