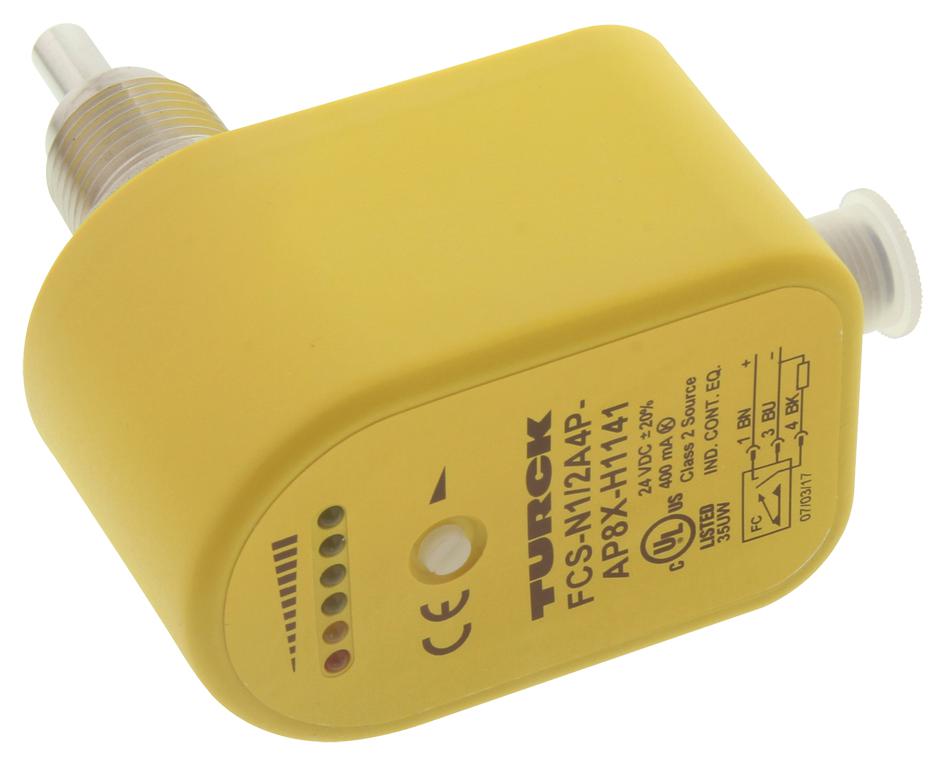

Turck FCSN12A4PAP8XH1141 Flow sensor
The FCS-N1/2A4P-AP8X-H1141 is an immersion flow sensor designed for reliable liquid and gaseous media monitoring. Utilizing thermodynamic principles, it detects flow rates with a heating element that measures temperature differences caused by flow. Its robust construction includes IP67-rated plastic housing, stainless steel sensor material, and NPT 4-inch process connection, withstanding pressures up to 100 bar. The device features PNP NO contact output, short-circuit, and reverse polarity protection, operating within a temperature range of -20°C to 480°C for media and -20°C to 470°C ambient, with a compact M12 connector for easy installation.
Turck FCSN12A4PAP8XH1141 Flow sensor Specifications:
- Flow Measurement Principle: Calorimetric
- Flow Range: 4 to 150 om/s (water), 3 to 300 om/s (oil)
- Response Time: Max 12 seconds
- Operating Voltage: 19.2 to 28.8 VDC
- Current Consumption: <60 mA
- Output Function: PNP, NO contact
- Rated Operational Current: 0.4 A
- Voltage Drop: <15 V at full load
- Protection Class: IP67
- Housing Material: Plastic, PBT
- Sensor Material: Stainless Steel AISI 316
- Pressure Resistance: 100 bar
- Process Connection: NPT 4"
- Temperature Range (Medium): -20°C to 480°C
- Ambient Temperature Range: -20°C to 470°C
- Max Tightening Torque: 30 Nm
- Electrical Connection: M12 * 1 connector
- Switching State Indications: LED chain with green, yellow, red LEDs, indicating flow status
- Functional Principle: Thermal measurement for flow detection
- Stand-by Time: 8 seconds
- Switch-on Time: 28 seconds
- Switch-off Time: 28 seconds
- Temperature Jump Response Time: Max 12 seconds
Buy the Turck FCS-N1/2A4P-AP8X-H1141 – Reliable Flow Sensor for Industrial Applications
Purchase the Turck FCS-N1/2A4P-AP8X-H1141 flow sensor online today. Engineered with advanced thermodynamic technology, it provides accurate and wear-free flow measurement for liquids and gases. Its IP67-rated plastic housing, stainless steel sensor, and NPT process connection ensure durability under demanding conditions. Whether monitoring water or oil flow at high temperatures or pressures up to 100 bar, this sensor offers reliable operation, quick response times, and easy installation with M12 connector. Ideal for industrial automation, manufacturing, and process control environments.
Order your Turck Series FCS-N1/2A4P-AP8X-H1141 today and ensure precise flow monitoring for high-temperature industrial processes.
Frequently Asked Questions
Where can I buy Turck FCSN12A4PAP8XH1141?
You can click on the BUY or RFQ button to purchase FCSN12A4PAP8XH1141 from an authorized Turck distributor.
How do I troubleshoot issues or seek technical support for part FCSN12A4PAP8XH1141?
You can download the FCSN12A4PAP8XH1141 datasheet or visit the Turck website for support.
Who is the manufacturer of FCSN12A4PAP8XH1141?
Turck
