Turck FS4505 Eurofast Receptacle

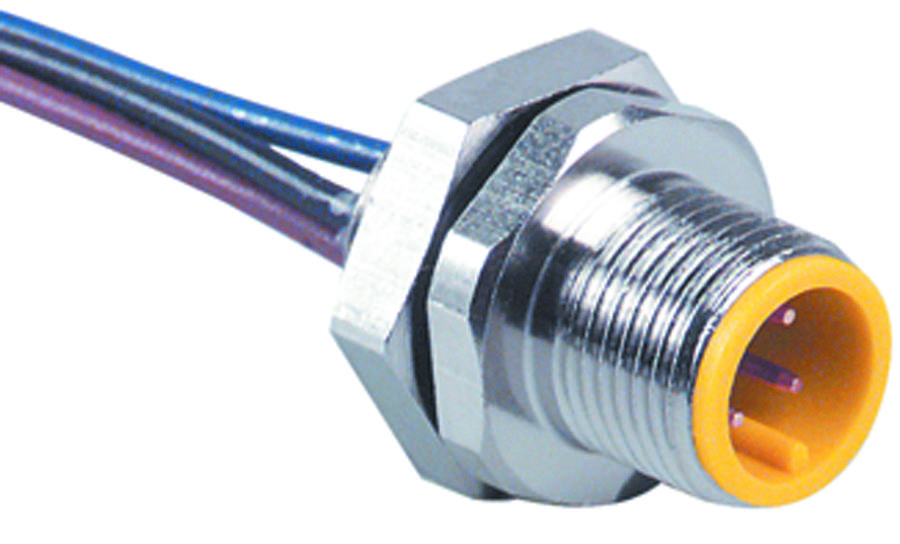

The FS 4.5-0.5 is an Eurofast® front mount male receptacle designed for sensing and instrumentation applications. It features a durable nickel-plated brass housing and locknut for corrosion resistance. The contact carrier is made of nylon or TPU, with gold-plated brass contacts ensuring reliable electrical connectivity. Equipped with a nitrile O-ring for sealing and PVC conductors, it withstands harsh environments with an IP68 protection rating. Operating from -40°C to 105°C, it supports 5-pin cordsets, offering flexibility and robust performance for industrial use.
Turck FS4505 Eurofast Receptacle Specifications:
- Contact Carrier Material: Nylon or TPU
- Contact Material/Plating: Brass with Gold plating
- Housing/Locknut Material/Plating: Brass with Nickel plating
- O-Ring Material: Nitrile
- Rated Current: 4.08 A
- Rated Voltage: 250 V
- Conductor Insulation Material: PVC
- Number of Conductors: 5 x 22 AWG
- Temperature Range: -40°C to +105°C
- Protection Class: IP68, meets NEMA 1, 3, 4, 6P standards
- Dimensions: 19.0 mm diameter, with length options up to 7.0 mm
- Cable Length Tolerance: +4%, -0%
Buy the Buy Eurofast Receptacle Part Number FS4505 Online
Purchase the Eurofast Receptacle FS4505 online today to ensure your sensing and instrumentation projects benefit from durable nickel-plated housing, gold-plated contacts, and high IP68 protection. This reliable front mount male connector supports 5-pin cordsets, operates within a wide temperature range, and is suitable for harsh industrial environments. Place your order now to experience fast shipping, authentic quality, and the dependable connectivity your applications demand, all at your convenience.
Order your Eurofast Series FS4505 male receptacle today and enjoy reliable sealing, corrosion resistance, and rugged industrial performance.
