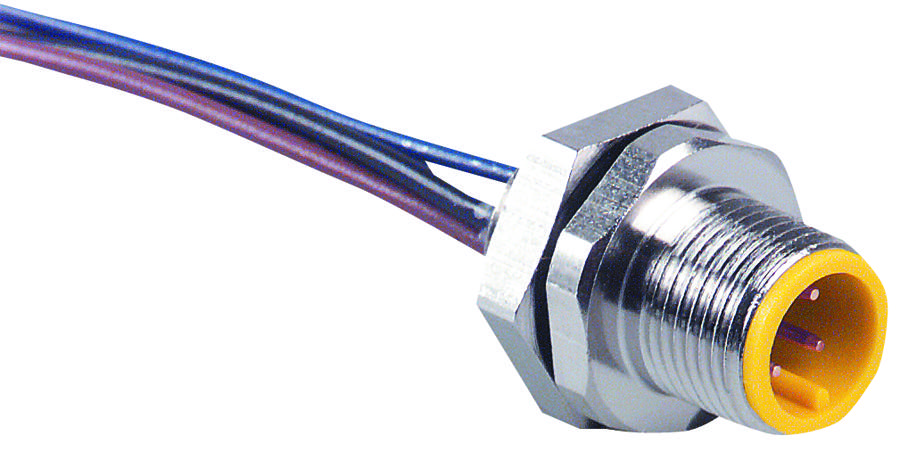

Turck FSFD805 Industrial Receptacle
The FSFD series includes rear-mount receptacles with leads, available in 6, 8, 10, and 12-pin configurations, designed for industrial connectivity with IP68 protection. These connectors feature nickel-plated brass housings, are UL Recognized and CSA approved, and support current ratings up to 2A at 60VAC or 75VDC. They are compatible with 8-, 10-, and 12-pin cordsets, with typical panel cutouts of 15.3 x 14mm. Optional stainless steel models are available, and the standard lead length is 0.5 meters, with customization available upon request.
Turck FSFD805 Industrial Receptacle Specifications:
- Pin configurations: 6, 8, 10, 12
- Protection: IEC IP68
- Housing Material: Nickel plated brass
- Standard Lead Length: 0.5 meters, custom lengths available
- Current Rating: 2A at 60VAC/75VDC
- Compatible with: 8-pin, 10-pin, 12-pin cordsets
- Standard panel cutout: 15.3 x 14mm
- Operating Temperature: Not specified
- Certifications: UL Recognized, CSA Approved
- Materials: Nickel plated brass housing, optional stainless steel
- Cable Compatibility: UL Recognized, CSA Approved
- Add '/S717' for PVC jacketed cable
Buy the Turck FSFD805 – Reliable Industrial Receptacles for Industrial Applications
Secure your industrial connections with the Turck FSFD805 receptacle, featuring multiple pin configurations, IP68 protection, and UL and CSA approvals. Ideal for demanding environments, these nickel-plated brass connectors support 2A at 60VAC or 75VDC, ensuring dependable performance. With a standard lead length of 0.5 meters, customizable options are available for specific project needs. Easy to install with a standard panel cutout of 15.3 x 14mm, they provide a robust and versatile solution for industrial automation and equipment connectivity.
Buy Turck FSFD805 now and experience unmatched reliability and performance in industrial connectivity solutions.
Frequently Asked Questions
Where can I buy Turck FSFD805?
You can click on the BUY or RFQ button to purchase FSFD805 from an authorized Turck distributor.
How do I troubleshoot issues or seek technical support for part FSFD805?
You can download the FSFD805 datasheet or visit the Turck website for support.
Who is the manufacturer of FSFD805?
Turck
