Turck bs51330 industrial connector

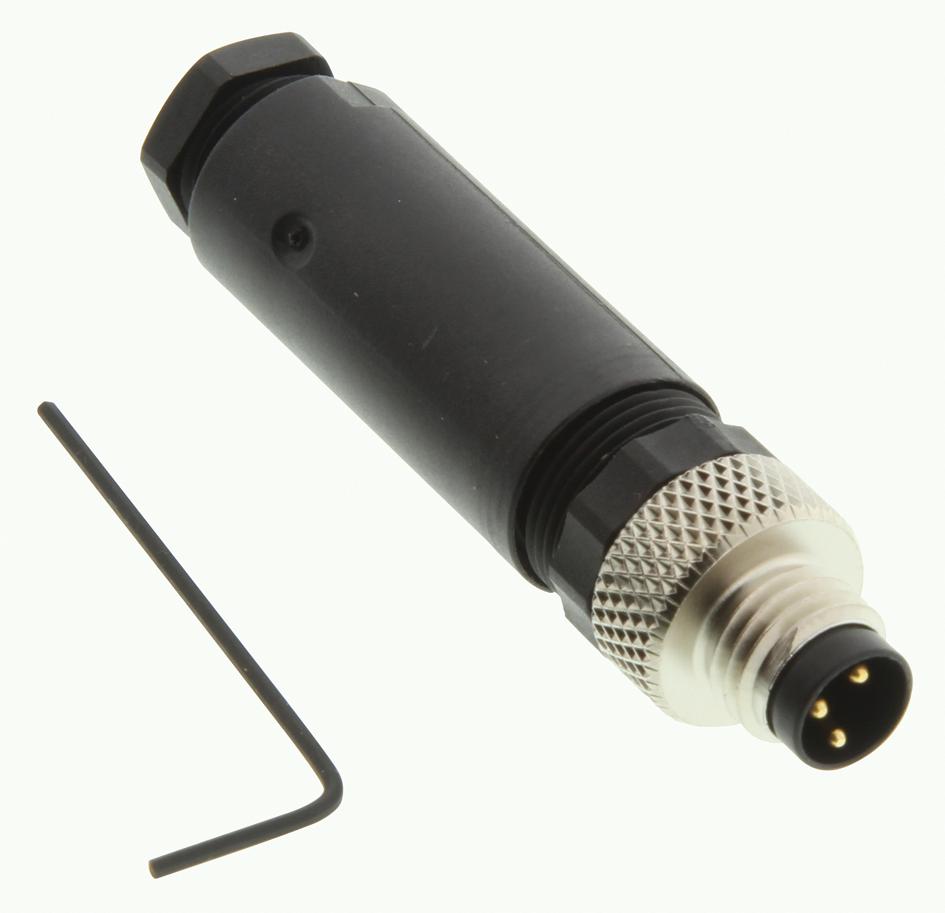

The Turck PicoFleX Male Connector is a versatile, field-wirable component designed for industrial automation wiring. Constructed from durable black PBT material, it accepts 3-5 mm cables and features solder terminals supporting up to 24 AWG conductors rated at 85°C. The device is rated for 60 VAC and 75 VDC at 4A, or 30 VAC/36 VDC at 3A, with screw terminal options supporting up to 22 AWG conductors. IP67 protection ensures safety in harsh environments, making it essential for reliable, secure electrical connections.
Turck bs51330 industrial connector Specifications:
- Material: PBT, Black
- Cable Diameter: 3-5 mm
- Terminal Type: Solder or Screw
- Conductors Supported: Up to 24 AWG (solder); Up to 22 AWG (screw)
- Temperature Rating: 85°C
- Voltage Rating: 60 VAC and 75 VDC (4A); 30 VAC/36 VDC (3A)
- Ingress Protection: IEC IP 67
- Compatible with: 3-pin and 4-pin threaded cordsets and receptacles, including snap-lock types
- Dimensions: based on M8x1 PicoFleX standard, suitable for automation wiring applications
Buy the Buy Turck PicoFleX Male Connector Part Number bs51330 Online
Purchase the Turck PicoFleX Male Connector online today and ensure your industrial wiring is secure and reliable. Designed for demanding automation environments, this field-wirable connector supports cables from 3-5 mm and features solder or screw terminals for flexible installation. Rated at 85°C and protected by IP67, it withstands challenging conditions while providing robust electrical connections. Ideal for factory automation, robotics, and manufacturing systems, this connector offers durability, ease of use, and trusted quality for your project needs.
Order your Turck PicoFleX Male Connector bs51330 today and enhance your automation wiring with reliable, easy-to-install industrial connectors.
