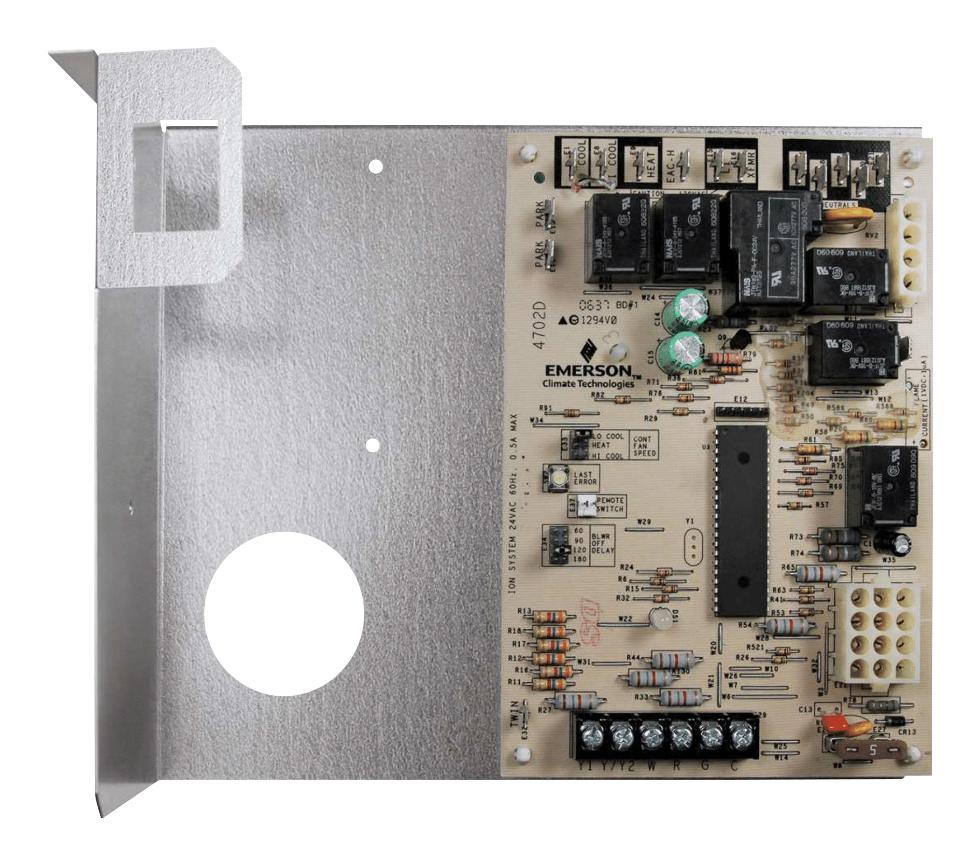

WHITE RODGERS 50A56956 Furnace Control Module
The York Single Stage HSI Integrated Furnace Control Kit, part number 50A56-956, offers a reliable replacement for White-Rodgers models 50A56-242 and 50A56-243. Designed for easy installation, this control module features essential functions such as system diagnostics, multiple fan speeds, and outputs for ignitors, humidifiers, and electronic air cleaners. It supports various heating and cooling options, operates within a wide temperature range, and ensures optimal furnace performance, making it ideal for direct replacement in York and compatible systems requiring 120V ignitors.
WHITE RODGERS 50A56956 Furnace Control Module Specifications:
- Input Voltage: 25 VAC 50/60 Hz
- Max. Input Current: 0.45 amp at 25 VAC
- Relay Load Ratings: Valve Relay 1.5 amp @ 25 VAC, Ignitor Relay 6.0 amp @ 120 VAC, Inducer Relay 2.2 FLA-3.5 LRA @ 120 VAC, Circulator Relay 14.5 FLA-25.0 LRA @ 120 VAC
- Minimum Flame Current: 1 microamp DC, Maximum flame detection leakage resistance: 100 M ohms
- Operating Temperature Range: -40° to 175°F (-40° to 80°C)
- Humidity Range: 5% to 93% RH (non-condensing)
- Mounting: Surface mount, multi-poise
- Dimensions: 4.825 inches W x 7 inches H x 1.25 inches D
- Timing Specifications: Pre-purge and ignition timing vary depending on switch position; typical pre-purge: 60 seconds
- Supports systems with multiple stages, humidifier, and electronic air cleaner output
- Suitable for natural gas, manufactured gas, mixed gases, and LP gas/air mixtures
- UL Listed, CSA Certified, ETL approved
Buy the Buy York HSI Control Part Number 50A56-956 Online
Purchase the York furnace control module online for fast, secure delivery. This easy-to-install kit includes all necessary components like ignition control, installation instructions, and OEM cross-reference. Designed for direct replacement, it ensures system diagnostics, multiple fan speeds, and outputs for ignitors, humidifiers, electronic air cleaners, and circulators. Operating reliably within a wide temperature range, it's compatible with various heating systems and condensing units, providing optimal performance and peace of mind for HVAC professionals and homeowners alike.
Get York HSI Control Part Number 50A56-956 today—built for precise furnace operation and long-lasting durability.
Frequently Asked Questions
Where can I buy WHITE RODGERS 50A56956?
You can click on the BUY or RFQ button to purchase 50A56956 from an authorized WHITE RODGERS distributor.
How do I troubleshoot issues or seek technical support for part 50A56956?
You can download the 50A56956 datasheet or visit the WHITE RODGERS website for support.
Who is the manufacturer of 50A56956?
WHITE RODGERS
