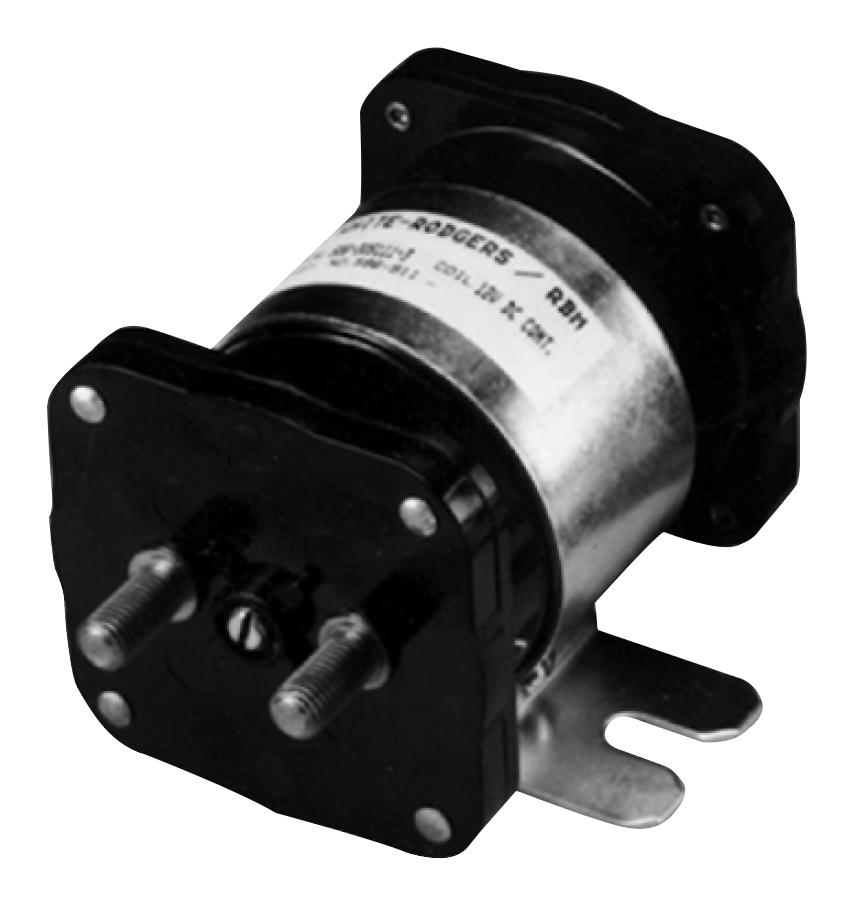

WHITE RODGERS 586314111 Industrial Contactor
The product is a versatile industrial contactor featuring Single Pole Normally Open (SPNO) and Single Pole Double Throw (SPDT) contacts, suitable for various control applications. It offers dust and water resistance, with isolated endcaps and robust construction for reliable operation in harsh environments. The contactor has compact dimensions, with options for different models, weights, and coil voltages, including standard 24V DC. Designed for durability, it incorporates secure terminal connections, a specified temperature range of -40°F to +149°F, and recommended torque settings for optimal performance, ideal for automation systems.
WHITE RODGERS 586314111 Industrial Contactor Specifications:
- Dimensions: 3.56 inches L x 3.13 inches W x 2.19 inches H for model 124-105111, 4.69 inches L x 3.13 inches W x 2.19 inches H for model 124-305111
- Weight: 16.0 oz. for 124-105111, 19.0 oz. for 124-305111
- Temperature Range: -40°F to +149°F
- Terminations: #10-32 UNF-2A for coil, 5}10-24 UNF-2A for contacts
- Terminal Torque: 60 in. lbs. max for contact, 12-18 in. lbs. for coil
- Material: Silver contact plating, isolated coil design
- Coil Voltage: Standard 24V DC
- Coil Resistance: 53.0 Ohms at 25°C
- Contact Rating: 200 amps inductive load at 600V
- Model Types: Standard coil and isolated coil options
- Mounting: Vertical plane with coil terminals, recommended hardware torque applied appropriately
Buy the Buy White Rodgers Contactors Part Number 586314111 Online
Purchase the White Rodgers industrial contactor online to ensure reliable control in harsh environments. Featuring dust and water resistance, compact dimensions, and a robust build, this contactor is ideal for automation and control projects. With a standard 24V DC coil, it offers dependable operation, easy mounting, and secure terminal connections. Order now to benefit from fast shipping, authorized support, and the best prices for high-quality industrial components designed for durability and performance in demanding applications.
Order your White Rodgers Series586314111 contactor today and enhance your industrial control systems with reliable and efficient switching power.
