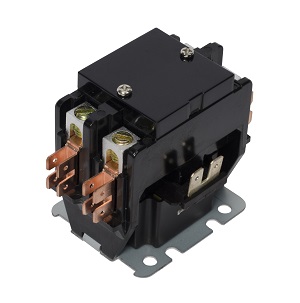

WHITE RODGERS 90249S1 Definite Purpose Contactor
The WHITE RODGERS 90-249S1 is a heavy-duty contactor designed for use in air conditioning and heating equipment. It offers a low VA coil to minimize heat generation and extend operational life, along with a quiet operation profile. The universal mounting bracket simplifies installation by fitting existing mounting holes. Featuring double break contacts, this contactor ensures reliable make and break performance. Screw terminals or pressure connectors, along with quick connects, provide flexible installation options. Suitable for a range of voltage and current applications, this contactor is a reliable choice for industrial and commercial applications.
WHITE RODGERS 90249S1 Definite Purpose Contactor Specifications:
- Insulating Material: High quality electrical-grade thermosetting resin
- Temperature Range: -40°F to 150°F
- Mechanical Life: Conforms to UL and ARI specifications
- Electrical Life: Conforms to UL and ARI specifications
- Weight: 9.5 oz
- Agency: U.L. file number E12139
- Coils Frequency: 50 / 60 Hz
- Coil Insulation: Class B (130°C)
- Termination: Pressure Connectors and Double 1/4” Q.C.
- Operate Voltage: 85% of nominal coil voltage
- Duty Cycle: Continuous
- Coil Data - 24V: Res DC: 11 Ohms, Current: 250 mA, Nominal VA: 6, Max. Inrush VA: 32
- Coil Data - 120V: Res DC: 224 Ohms, Current: 50 mA, Nominal VA: 6, Max. Inrush VA: 32
- Coil Data - 208/240V: Res DC: 997 Ohms, Current: 25 mA, Nominal VA: 6, Max. Inrush VA: 32
- Contact Ratings - 277V: FLA: 30, LRA: 150, RES: 40
- Contact Ratings - 480V: FLA: 30, LRA: 125, RES: 40
- Contact Ratings - 600V: FLA: 30, LRA: 100, RES: 40
- Contact Ratings - 277V (94-247 thru 94-249): FLA: 40, LRA: 200, RES: 50
- Contact Ratings - 480V (94-247 thru 94-249): FLA: 40, LRA: 160, RES: 50
- Contact Ratings - 600V (94-247 thru 94-249): FLA: 40, LRA: 120, RES: 50
