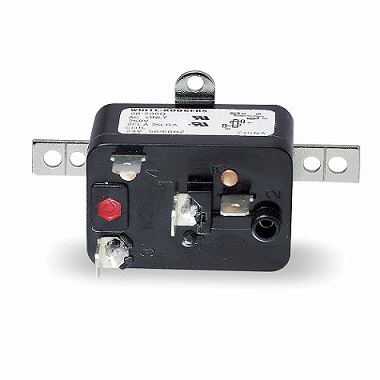

WHITE RODGERS 90290QS1 Totally Enclosed Relay
The White Rodgers 90-290QS1 is a totally enclosed electromechanical relay ideal for a variety of applications including fan motor control, solenoid activation, and general-purpose switching. Its compact design ensures quiet and reliable operation, making it suitable for heating, cooling, and other industrial environments. The relay is UL and CSA listed, providing assurance of quality and safety. It is designed to handle both single and two-speed fan motors, as well as resistive loads, offering versatility in various electrical systems.
WHITE RODGERS 90290QS1 Totally Enclosed Relay Specifications:
- Temperature Range: -40°F to 150°F
- Mechanical Life: 1,000,000 operations, 60 operations/min
- Electrical Life: 100,000 operations, 6 operations/min
- Load Test Inrush Rating: 0.4 to 0.5 P.F.
- Load Test Breaking Rating: 100% continuous, 0.64 to 0.8 P.F.
- Weight: 2.5 oz
- Agency Listings: U.L. file number E12139 or E22381, C.S.A. file number LR13360
- Coils Frequency: 50 / 60 Hz
- Coils Insulation: Class B
- Coils Termination: 1/4" Quick Connect
- Coils Operate: 85% of nominal coil voltage; 110% maximum safe operate
- Coils Duty Cycle: Continuous
- Continuous Inductive Load: 8 Amps
- Continuous Resistive Load: 16 Amps
- Inrush Inductive Load: 25 Amps
Buy the 90-290QS1 WHITE RODGERS Totally Enclosed Relay | myMectronic
Purchase the WHITE RODGERS 90-290QS1 relay securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy WHITE RODGERS 90290QS1?
You can click on the BUY or RFQ button to purchase 90290QS1 from an authorized WHITE RODGERS distributor.
How do I troubleshoot issues or seek technical support for part 90290QS1?
You can download the 90290QS1 datasheet or visit the WHITE RODGERS website for support.
Who is the manufacturer of 90290QS1?
WHITE RODGERS
