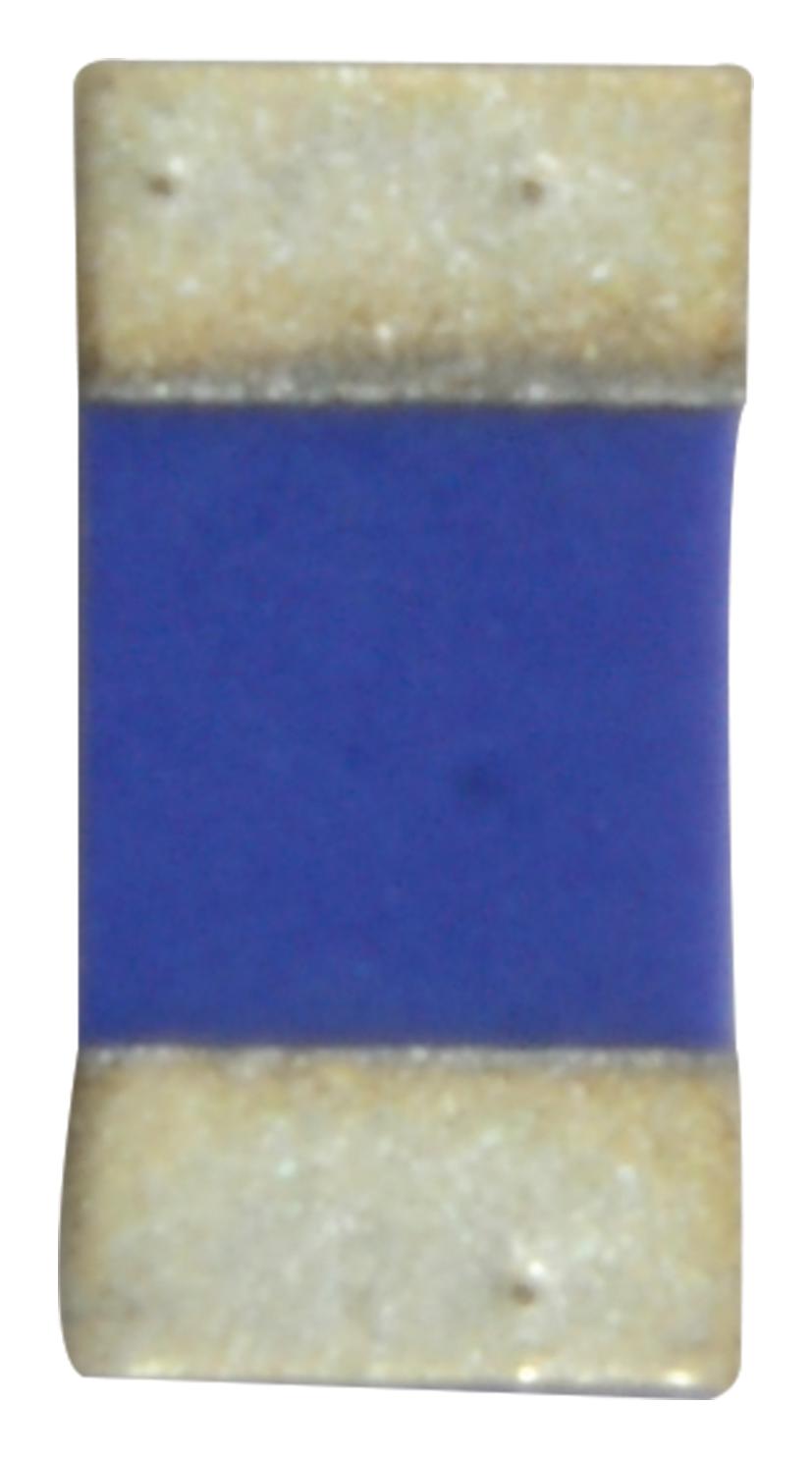

YAGEO ANT3216LL15R1575A Ceramic Chip Antenna
The YAGEO ANT3216LL15R1575A is a compact ceramic chip antenna specifically engineered for GPS and wireless applications. Its small size (3.2x1.6mm) and high radiation efficiency make it ideal for integration into devices like tablets, navigation systems, and telematics boxes. The antenna operates at a frequency of 1.575 GHz and is RoHS compliant, ensuring environmentally friendly operation. It features a linear polarization and omni-directional beamwidth, providing reliable wireless connectivity across a wide range of applications. The antenna's robust design includes resistance to soldering heats and a termination configuration suitable for feeding and grounding.
YAGEO ANT3216LL15R1575A Ceramic Chip Antenna Specifications:
- Centre Frequency: 1.575 GHz
- Bandwidth: 51 MHz (Typ.)
- Return Loss: 10 dB min
- Polarization: Linear
- Azimuth Beamwidth: Omni-directional
- Peak Gain: 2.01 dBi (Typ.)
- Impedance: 50Ω
- Operating Temperature: -40~105 degree
- Maximum Power: 1 W
- Termination: Ag (Environmentally-FriendlyLeadless)
- Resistance to Soldering Heats: 260℃, 10sec.
- Size: 3.2 ×1.6 mm
- Antenna Type: Chip Antenna
- Packing Style: Tape and Reel
- Working Frequency: 1.575 GHz
- Material: Ceramic
Buy the ANT3216LL15R1575A YAGEO Ceramic Chip Antenna | myMectronic
Secure your YAGEO ANT3216LL15R1575A Ceramic Chip Antenna today with our easy and secure online ordering process.
