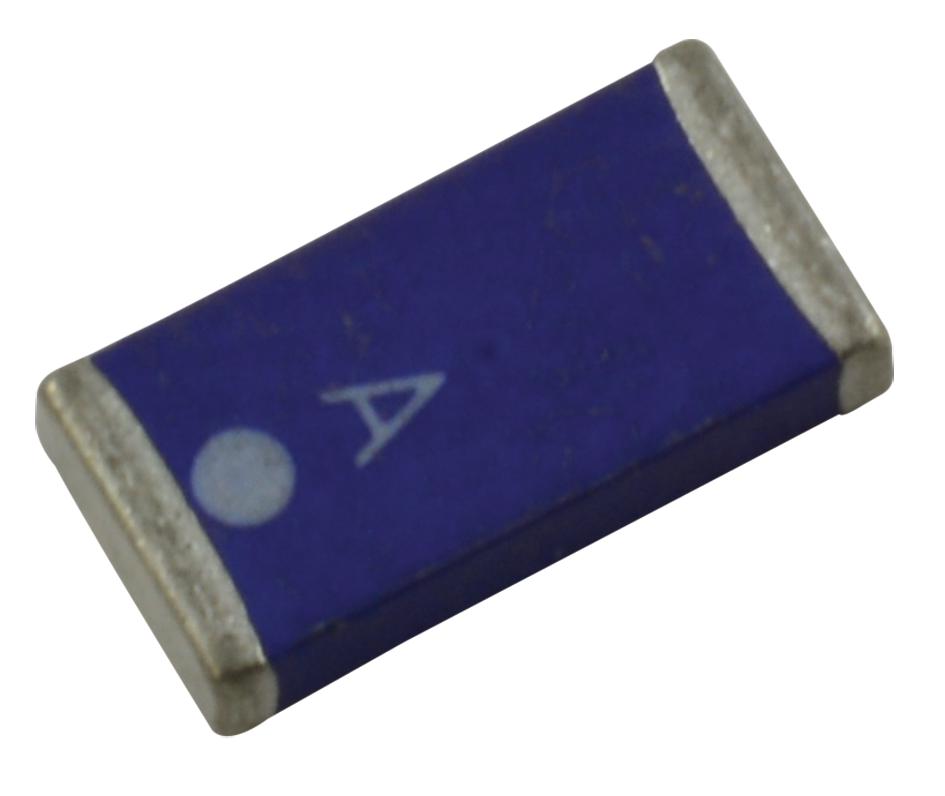

YAGEO ANT6230LL01R1575A Ceramic Chip Antenna
The YAGEO ANT6230LL01R1575A is a ceramic chip antenna within the 6230 series, engineered for efficient wireless communication. Its compact size and high radiation efficiency make it ideal for integration into various devices, including tablets, navigation systems, and telematics boxes. The antenna operates at a frequency of 1.575GHz and is designed to be compatible with reflow processes. It is also RoHS compliant, ensuring environmentally friendly operation. The antenna features a linear polarization and an omni-directional beamwidth, providing reliable signal transmission and reception. Its compact dimensions (6.15 x 3.00 x 1.25 mm) and robust construction make it a versatile solution for a wide range of wireless applications.
YAGEO ANT6230LL01R1575A Ceramic Chip Antenna Specifications:
- Centre Frequency: 1.575GHz
- Bandwidth: 55 MHz(Typ.)
- Return Loss: 10 dB(min)
- Polarization: Linear
- Azimuth Beamwidth: Omni-directional
- Peak Gain: 2.52 dBi(Typ.)
- Impedance: 50Ω
- Operating Temperature: - 40~105℃
- Maximum Power: 1 W
- Termination: Ni / Sn(Environmentally-FriendlyLeadless)
- Resistance to Soldering Heats: 260℃, 10sec.
- Size: 6.2 × 3.0 mm
- Antenna Type: Chip Antenna
- Serial No: L01
- Packing Style: Tape and Reel
- Working Frequency: 1.575GHz
- Dimensions L: 6.15 ±0.25 mm
- Dimensions W: 3.00 ±0.25 mm
- Dimensions T: 1.25 ±0.15 mm
- Dimensions A: 0.50 ±0.20 mm
- S1: Feeding Point
- S2: Soldering Point
