YAGEO CA0612JRNPO9BN220 Ceramic Multilayer Capacitor Array
High-density surface-mount ceramic multilayer capacitor array designed for professional and consumer electronics. Features RoHS compliance, halogen-free termination, and multiple sizes including 0508 (4x0402) and 0612 (4x0603). Offers increased volumetric efficiency with less than 50% of the board space required by discrete components, enabling high throughput in manufacturing and assembly. The series includes NPO, X7R, and Y5V dielectric types with rated voltages up to 50V, perfect for compact, reliable, and high-performance electronic designs.
YAGEO CA0612JRNPO9BN220 Ceramic Multilayer Capacitor Array Specifications:
- Dimensions: 0508 (4x0402), 0612 (4x0603)
- Rated Voltage: 16V, 25V, 50V
- Capacitance Range: 10 pF to 100 nF
- Dielectric Types: NPO, X7R, Y5V
- Tolerance: NPO ±5%, +10%; X7R ±10%, +20%; Y5V 20% to +80%
- Temperature Range: -55°C to +125°C for NPO and X7R; 30°C to +85°C for Y5V
- Dissipation Factor: NPO <0.1%, X7R <3.5% (16V), Y5V 22%-82%
- Insulation Resistance: >10 GΩ at 1 minute DC voltage
- RoHS Compliant & Halogen Free
- Packaging: Tape on reel, sizes 7 and 13 inches, quantities up to 20,000 per reel

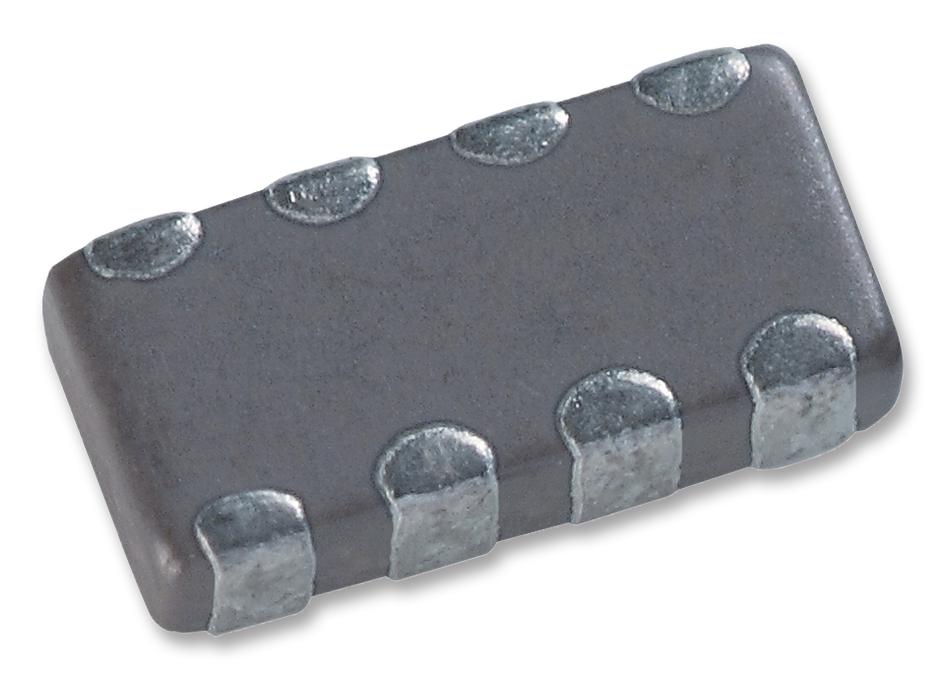

Buy the YAGEO Series Surface-Mount Capacitor Array: CA0612JRNPO9BN220
Discover the high-density reliability of the YAGEO ceramic multilayer capacitor array, ideal for professional and consumer electronics. Featuring RoHS compliance, halogen-free endings, and sizes 0508 and 0612, this series offers rated voltages up to 50V. Its compact design provides high volumetric efficiency, saving board space and increasing manufacturing throughput. Suitable for high-performance, space-constrained applications, these capacitors ensure long-term stability and low loss. Buy online today to enhance your electronic designs with trusted YAGEO quality and advanced ceramic technology.
Get YAGEO CA0612JRNPO9BN220 today—built for reliability, compact size, and high performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy YAGEO CA0612JRNPO9BN220?
You can click on the BUY or RFQ button to purchase CA0612JRNPO9BN220 from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part CA0612JRNPO9BN220?
You can download the CA0612JRNPO9BN220 datasheet or visit the YAGEO website for support.
Who is the manufacturer of CA0612JRNPO9BN220?
YAGEO
