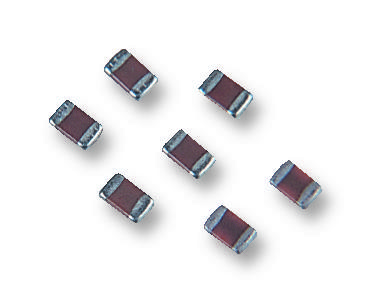

YAGEO CC0603CRNPO9BNR56 Ceramic Capacitor
The CC0603CRNPO9BNR56 is a surface-mount ceramic multilayer capacitor designed for general-purpose applications like consumer electronics, telecommunications, and data processing. Made with RoHS and halogen-free compliant Nickel-barrier end terminations, it offers high reliability and stability. The capacitor features a compact 0603 size, with capacitance options suitable for varied circuit requirements, and is delivered in tape on reel packaging for easy surface-mount assembly. Its dielectric is NPO, known for low loss and stable capacitance over temperature. The device supports voltage ratings up to 16V–50V, ensuring compatibility with various electronic designs.
YAGEO CC0603CRNPO9BNR56 Ceramic Capacitor Specifications:
- Size: 0603 (inches: 0.06 x 0.03) or 1.6 x 0.8 mm
- Capacitance range: 0.22 pF to 100 nF
- Capacitance tolerance: ±0.1 pF, ±0.25 pF, ±0.5 pF, ±1%, ±2%, +5%, +10%
- Rated voltage: 16V, 25V, 50V depending on series
- Temperature range: -55°C to +125°C
- Insulation resistance: ≥10 GΩ at 1 minute at rated voltage
- Dissipation factor (D.F.): <1% for C < 30 pF, ≤0.1% for C ≥ 30 pF
- RoHS and halogen free compliance
- Structure: Ceramic dielectric with interleaved metal electrodes, covered with tin-plated end terminations
- Packaging: Tape on reel, blister, or bulk case, up to 50,000 units per reel
Buy the YAGEO Series General Purpose Ceramic Capacitor: CC0603CRNPO9BNR56
Experience the high quality and reliability of the YAGEO Ceramic Capacitor CC0603CRNPO9BNR56. Designed for general-purpose electronics, it offers a compact size, stable capacitance over wide temperature ranges, and RoHS compliance. Delivered in tape on reel packaging, it ensures easy surface-mount assembly for consumer electronics, telecom, and data processing applications. With voltage ratings up to 50V and capacitance options from 0.22 pF to 100 nF, this capacitor guarantees optimal performance and durability in your circuit designs. Buy online today for fast delivery and dependable quality.
Order your YAGEO Series General Purpose Ceramic Capacitor CC0603CRNPO9BNR56 today and ensure reliable, stable performance in your electronic designs.
Frequently Asked Questions
Where can I buy YAGEO CC0603CRNPO9BNR56?
You can click on the BUY or RFQ button to purchase CC0603CRNPO9BNR56 from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part CC0603CRNPO9BNR56?
You can download the CC0603CRNPO9BNR56 datasheet or visit the YAGEO website for support.
Who is the manufacturer of CC0603CRNPO9BNR56?
YAGEO
