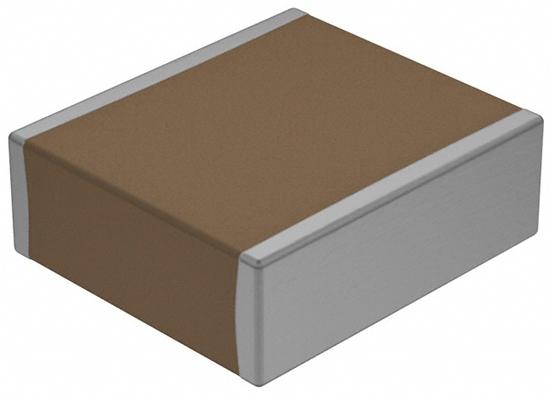

YAGEO CC0603KRX7R9BB101 Multilayer Ceramic Capacitor
The Yageo CC series capacitors are multilayer ceramic chip capacitors (MLCC) featuring Class 2 X7R dielectric material, suitable for general-purpose applications. They consist of a rectangular ceramic dielectric block with interleaved metal electrodes, providing high capacitance per volume. The internal electrodes connect to the end terminations, which are plated with tin (NiSn). These ultra-small ceramic capacitors offer relatively high capacitance values, ranging from 100pF to 22μF, and are available in various sizes including 0201, 0402, 0603, 0805, 1206, 1210, and 1812. They have voltage ratings from 6.3V to 50V, operate across temperatures from -55°C to 125°C, and feature nickel barrier end terminations for durability. The capacitors are qualified according to IEC60068 standards and are available with tolerances of ±5%, ±10%, and ±20.
YAGEO CC0603KRX7R9BB101 Multilayer Ceramic Capacitor Specifications:
- Capacitance range: 100pF to 22μF
- Tolerance: ±5%, ±10%, ±20%
- Voltage ratings: 6.3V, 10V, 16V, 25V, 50V
- Temperature Range: -55°C to 125°C
- Physical Sizes: 0201, 0402, 0603, 0805, 1206, 1210, 1812
- Construction: Rectangular ceramic dielectric with interleaved metal electrodes
- Termination: Lead-free plated tin (NiSn) with nickel barrier
- Application: General-purpose electronics, data processing, mobile devices
- Material: X7R dielectric ceramic
- Compliance: RoHS, Halogen Free
- Imp: Impedance characteristics vary with frequency, suitable for decoupling and bypassing
- Quality Standards: IEC 60384-4.3, 4.6, 4.14 for soldering, endurance, and environmental tests
Buy the YAGEO Series X7R Ceramic Capacitors: CC0603KRX7R9BB101
Purchase YAGEO multilayer ceramic capacitors with Class 2 X7R dielectric—available in multiple sizes and voltage ratings up to 50V. These capacitors operate across temperatures from -55°C to 125°C and feature lead-free tin terminations for durability and environmental compliance. Ideal for general electronics, data processing, and mobile devices, they deliver high capacitance values ranging from 100pF to 22μF. With various tolerances and RoHS compliance, buying online ensures quick delivery of quality components for your electronic applications.
Buy YAGEO CC0603KRX7R9BB101 now and experience reliable performance and high capacitance in compact SMD package.
Frequently Asked Questions
Where can I buy YAGEO CC0603KRX7R9BB101?
You can click on the BUY or RFQ button to purchase CC0603KRX7R9BB101 from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part CC0603KRX7R9BB101?
You can download the CC0603KRX7R9BB101 datasheet or visit the YAGEO website for support.
Who is the manufacturer of CC0603KRX7R9BB101?
YAGEO
