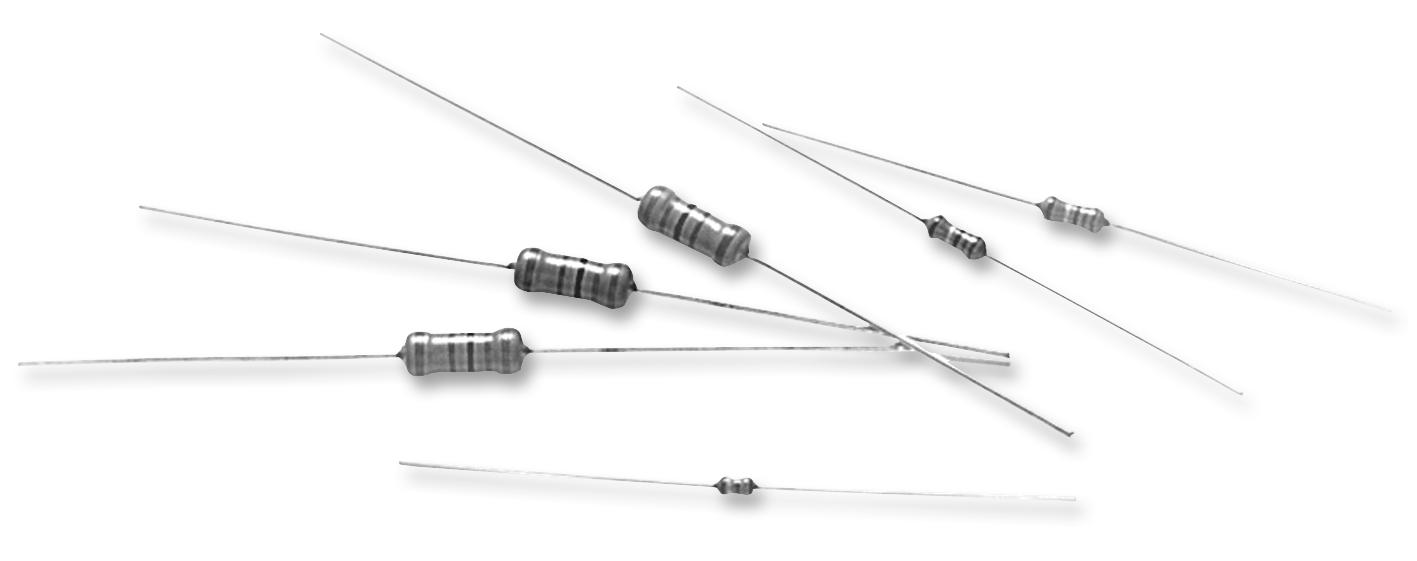

YAGEO MF0207FTE5210R Metal Film Resistor
The Metal Film Resistors from the MFO Series are high-precision, miniature resistors manufactured using vacuum sputtering technology to deposit multiple metal alloy layers onto high-grade ceramic substrates. Suitable for both general and specialized electronic applications, they offer a power rating of 0.4W to 0.6W, with excellent temperature stability and environmental durability. Coated with blue lacquer, these resistors feature tight resistance tolerances, high voltage withstand capabilities, and are designed for operation up to 155°C, making them ideal for demanding electronic circuits requiring reliable and stable performance.
YAGEO MF0207FTE5210R Metal Film Resistor Specifications:
- Power Rating at 70°C: 0.4W to 0.6W
- Maximum Working Voltage: 250V to 350V
- Maximum Overload Voltage: 500V to 700V
- Resistance Range: 1Ω to 4.7MΩ
- Operating Temperature Range: -55°C to +155°C
- Temperature Coefficient: ±50ppm/°C, ±100ppm/°C
- Dimensions: MFO204: 3.44 x 2.0 mm; MFO207: 6.34 x 2.0 mm
- Insulation Resistance: >10,000MΩ
- Solderability: 95% minimum coverage
- Environmental Resistance: Damp heat, solvent resistance, terminal robustness tested
- Test Methods: IEC 60115 standards applied
Buy the Buy Metal Film Resistors Part Number MF0207FTE5210R Online
Order Metal Film Resistor MF0207FTE5210R online and benefit from high-quality, stable resistance performance perfect for precision electronic circuits. Designed to operate efficiently up to 155°C, these resistors offer low TCR, high overload voltage, and excellent environmental durability. Coated with blue lacquer for added protection, they are suitable for demanding environments. With a power rating of 0.6W and resistance range up to 4.7MΩ, these resistors ensure reliable performance, easy handling, and long-term stability. Buy now for trusted quality and fast delivery.
Get Metal Film Resistors MF0207FTE5210R today—crafted for high precision, stability, and long-lasting reliability in demanding electronic applications.
Frequently Asked Questions
Where can I buy YAGEO MF0207FTE5210R?
You can click on the BUY or RFQ button to purchase MF0207FTE5210R from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part MF0207FTE5210R?
You can download the MF0207FTE5210R datasheet or visit the YAGEO website for support.
Who is the manufacturer of MF0207FTE5210R?
YAGEO
