YAGEO P6KE13CATR13 Transient Voltage Suppressor
The transient voltage suppressor P6KE13CATR13 is a bidirectional TVS diode designed for powerful overvoltage protection in sensitive electronic circuits such as AC/DC power supplies and low frequency signal lines like RS232 and RS485. It features a glass passivated junction, excellent clamping capability, fast response time, and high temperature soldering tolerance of 265°C for 10 seconds. Suitable for circuit protection, it complies with UL 94V-0 flammability standards and meets industry standards for reliability and safety.
YAGEO P6KE13CATR13 Transient Voltage Suppressor Specifications:
- Peak pulse power capability: 600W at 10/1000µs waveform
- Peak pulse current: 89.0A
- Steady state power dissipation: 5.0 Watts at 75°C
- Maximum junction temperature: +175°C
- Operating and storage temperature range: -55°C to +175°C
- Case: JEDEC DO-15 molded plastic
- Terminal: Axial leads, solderable per MIL-STD-750, Method 2026
- Polarity: Bidirectional with color band denoting cathode
- Dimensions: Length approximately 7.60 mm, width 0.71-0.86 mm, height 0.8 mm max.
- UL Safety Certification: E244458
- RoHS compliant & halogen free

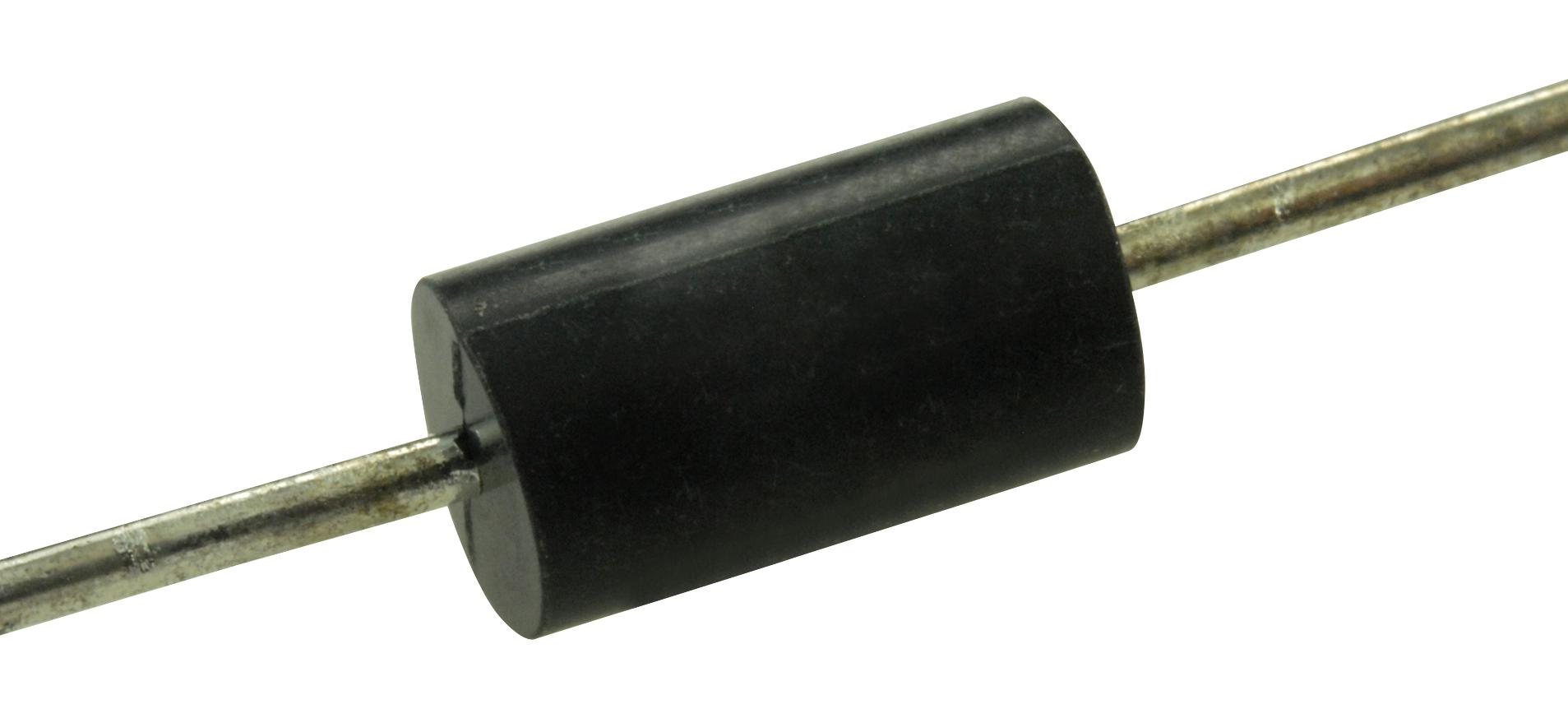

Buy the Buy YAGEO TVS Diode Part Number P6KE13CATR13 Online
Secure your electronic circuits with the YAGEO P6KE13CATR13 transient voltage suppressor. This bidirectional TVS diode offers a peak pulse power of 600W, high-temperature soldering capability of 265°C for 10 seconds, and UL safety certification. Designed for AC/DC power supplies and data line protection, it ensures fast response to overvoltage conditions, preventing damage and enhancing reliability. Easy to install with axial leads, it is ideal for demanding industrial and consumer electronic applications.
Buy YAGEO P6KE13CATR13 now and experience reliable overvoltage protection for sensitive electronics, with fast response and robust construction for demanding environments.
Frequently Asked Questions
Where can I buy YAGEO P6KE13CATR13?
You can click on the BUY or RFQ button to purchase P6KE13CATR13 from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part P6KE13CATR13?
You can download the P6KE13CATR13 datasheet or visit the YAGEO website for support.
Who is the manufacturer of P6KE13CATR13?
YAGEO
