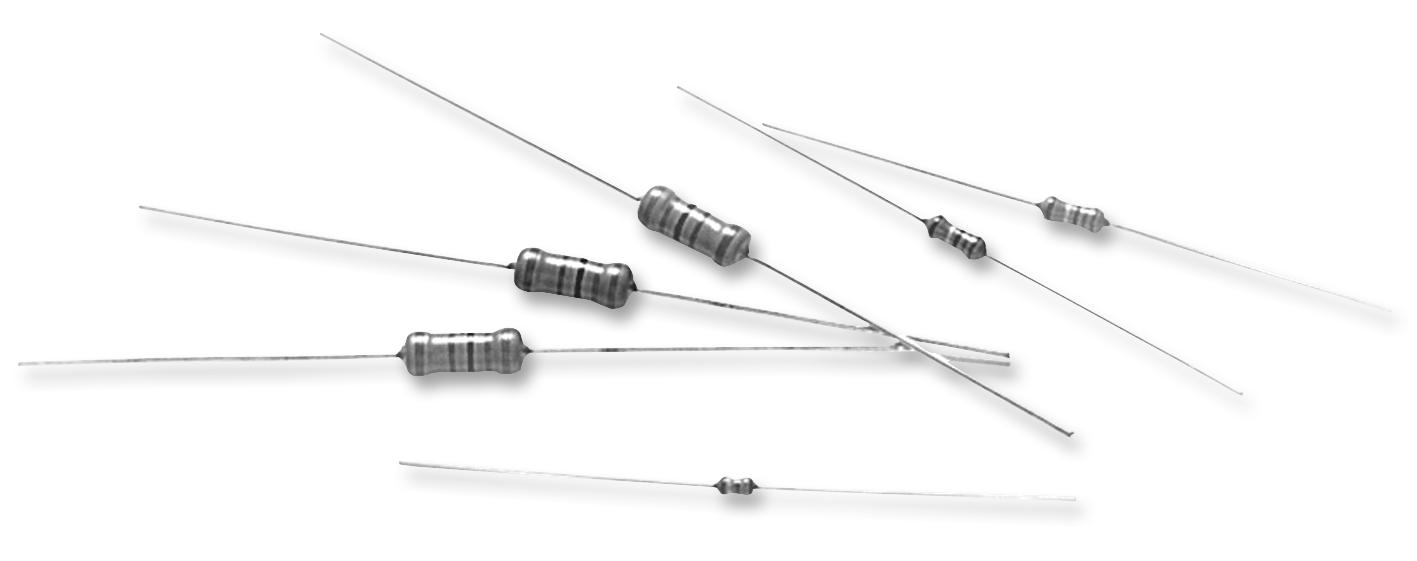

YAGEO PNP1WVJT520R1 High Power Wirewound Resistor
The PNP1WVJT520R1 is a high power wirewound resistor designed for industrial applications, featuring a ceramic rod base with resistive wire wound in a single layer. It is coated with flameproof multi-layer green lacquer that meets UL-94V-0 and UL-1412 standards, ensuring flame resistance and overload protection. Operating within -40°C to +200°C, it offers a power rating of 1W to 10W at 70°C, with a resistance range from 0.10Ω to 17kΩ. TCR is +300ppm/°C, making it suitable for high-temperature environments requiring durability and precision.
YAGEO PNP1WVJT520R1 High Power Wirewound Resistor Specifications:
- Power Rating at 70°C: 1W to 10W depending on model
- Resistance Range: 0.10Ω to 17kΩ
- Resistance Tolerance: ±5%
- Temperature Coefficient: +300ppm/°C
- Operating Temperature Range: -40°C to +200°C
- Flameproof Multi-layer Coating: Meets UL-94V-0 and UL-1412 standards
- Maximum Working Voltage: 300V
- Insulation Resistance: >100MΩ
- Solderability: 95% min. coverage after 340.5 sec at 235°C
- Impact Resistance: 22.5kg (24.5N) for 10 sec
- Damp Heat Testing: 56 days at 40-42°C, 90-95% RH, loaded with 0.1×RCWV
- Endurance Test: 1000 hours at 70°C with 1.5 hrs on / 0.5 hrs off cycle
- Resistance to Soldering Heat: 260°C for 10 sec
- Rated Continuous Working Voltage: Up to 300V depending on resistance and power rating
Buy the Brandname PNP1WVJT520R1 – Reliable High Power Resistor for Industrial Applications
Purchase the high power wirewound resistor online today and benefit from its exceptional flameproof coating, broad resistance range, and high-temperature durability. Designed for industrial applications, it offers reliable performance with resistance values from 0.10Ω to 17kΩ and power ratings up to 10W at 70°C. Its flameproof multi-layer coating meets UL safety standards, ensuring flame resistance and overload protection. Perfect for high-temperature environments, this resistor combines precision, durability, and ease of purchase through our online platform, supporting efficient and reliable electronic design.
Get Brandname PNP1WVJT520R1 today—built for precision, high power capacity, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy YAGEO PNP1WVJT520R1?
You can click on the BUY or RFQ button to purchase PNP1WVJT520R1 from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part PNP1WVJT520R1?
You can download the PNP1WVJT520R1 datasheet or visit the YAGEO website for support.
Who is the manufacturer of PNP1WVJT520R1?
YAGEO
