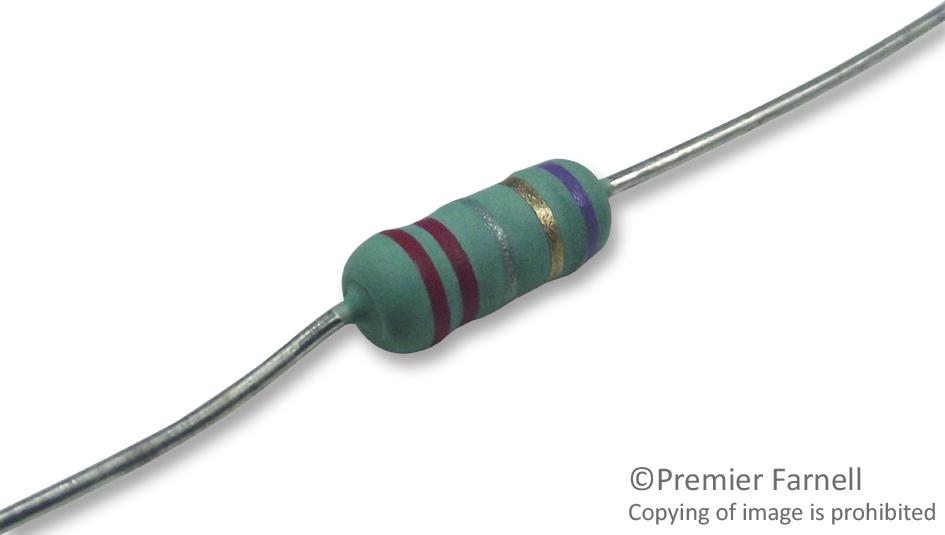

YAGEO PNP1WVJT520R22 Wirewound Resistor
The PNP1WVJT520R22 is a high power wirewound resistor suitable for applications requiring compact design and reliable performance at high temperatures. It features a resistive wire wound on a ceramic rod, with tinned electrolytic copper end caps, coated with flame-proof multilayer lacquer to ensure safety and durability. Rated at 3W power with a resistance range from 0.10Ω to 22kΩ, it meets UL-94V-0 fire safety standards, has a temperature coefficient of +300ppm/°C, and operates in ambient temperatures from -40°C to +200°C. This resistor is ideal for high-power, compact electronic circuits and industrial applications.
YAGEO PNP1WVJT520R22 Wirewound Resistor Specifications:
- Power Rating: 3W at 70°C, derated above 40°C
- Resistance Range: 0.10Ω to 22kΩ (+1%), 0.10Ω to 22kΩ (+5%) tolerance
- Temperature Coefficient: +300ppm/°C
- Operating Temperature Range: -40°C to +200°C
- Flameproof coating: Meets UL-94V-0
- Maximum Working Voltage: 300V
- Resistance Tolerance: ±5%
- Resistive wire wound on ceramic rod with tinned copper end caps
- Coated with green flameproof multilayer lacquer
- Dimensions vary per style, with specific sizes for miniature packages
- Compliance: UL-1412 overload test, IEC 601 compliance for overload and insulation tests
Buy the Buy High Power Wirewound Resistors Part Number PNP1WVJT520R22 Online
Purchase the high power wirewound resistor PNP1WVJT520R22 online now. Designed for industrial applications, it features a ceramic and flameproof coating for safety and reliability. With a power rating of 3W and resistance from 0.10Ω to 22kΩ, ensure optimal performance in demanding environments. Its operational temperature range extends from -40°C to +200°C, making it ideal for high-temperature, high-power electronic circuits. Benefit from quick delivery, secure checkout, and expert support—order now for durability and precision.
Get high power wirewound resistor PNP1WVJT520R22 today—built for reliability in industrial and high-temperature circuits with durable flameproof coatings.
Frequently Asked Questions
Where can I buy YAGEO PNP1WVJT520R22?
You can click on the BUY or RFQ button to purchase PNP1WVJT520R22 from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part PNP1WVJT520R22?
You can download the PNP1WVJT520R22 datasheet or visit the YAGEO website for support.
Who is the manufacturer of PNP1WVJT520R22?
YAGEO
