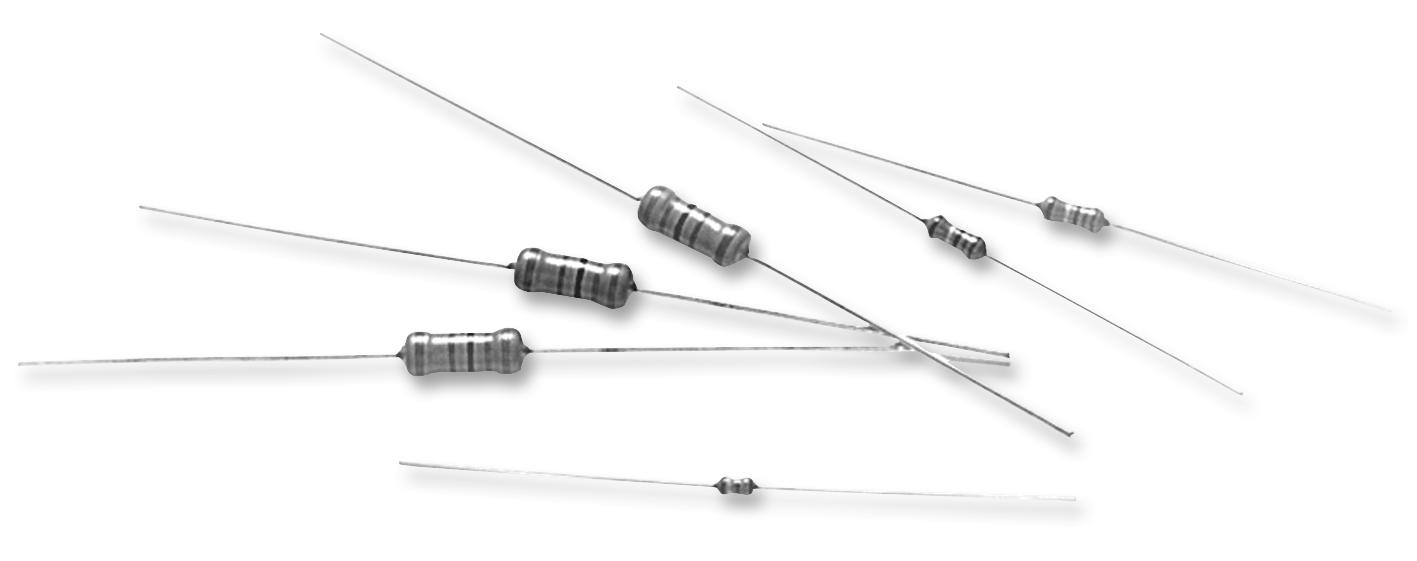

YAGEO PNP3WVJT730R1 Wirewound Resistor
High power wirewound resistor with a ceramic core, wound resistive wire, and flame-proof multi-layer coating. Designed for small packages with models for 2W, 3W, and higher ratings, these resistors feature excellent overload and thermal performance, suitable for high-temperature environments up to 200°C. They are tested to meet UL-94V-0 standards and UL-1412 overload criteria, ideal for demanding industrial applications requiring reliable performance in compact formats. The resistors have a resistance tolerance of 5% and a temperature coefficient of +300ppm/°C, making them suitable for precise workload management and heat generation control.
YAGEO PNP3WVJT730R1 Wirewound Resistor Specifications:
- Power Rating: 2W, 3W, 4W, 5W, 7W, 10W, 20W, 30W, 40W, 50W, 100W, 200W, 300W, 400W, 500W, 700W, 1KW, 2KW, 3KW, 4KW, 5KW, 7KW, 10KW, 20KW, 30KW, 40KW, 50KW, 100KW, 200KW, 300KW, 400KW, 500KW, 700KW, 1MW.
- Resistance Tolerance: ±5%
- Resistance Range: 0.10Ω to 1300Ω (depending on model), with special values available on request.
- Temperature Range: -40°C to +200°C, with derating above 70°C.
- Resistance Temperature Coefficient: +300ppm/°C.
- Flameproof Multi-layer Coating: Meets UL-94V-0 standard.
- Overload Test: Meets UL-1412 standards with 10 times rated power for 5 seconds.
- Maximum Voltage: 300V insulation proof.
- Resistance stability: ±1% at room temperature, tested for solderability, insulation resistance >100MQ, and solvent resistance.
- Dielectric strength: Tested at 300V for 60 seconds, with high resistance and robust termination.
- Environmental Tests: Damp heat, temperature cycling, and accidental overload with certification compliance.
- Physical Dimensions (examples): PNP3WV: 13mm x 10mm x 5.5mm, PNP7WV: 25mm x 10mm x 5mm, with tolerance ±0.05mm.
Buy the Buy High Power Wirewound Resistor Part Number PNP3WV Online
Order high power wirewound resistors online, including models rated at 2W to over 300W, designed for demanding industrial environments. These resistors feature flame-proof multi-layer coatings, precise resistance tolerances, and high-temperature operation up to 200°C. Certified for UL-94V-0 flame resistance and UL-1412 overload standards, they are suitable for controlling heat, managing power dissipation, and ensuring durability under harsh conditions. Secure your supply today for fast, reliable delivery of these essential electronic components.
Buy High Power Wirewound Resistor PNP3WV now and experience reliable performance in high-temperature industrial applications.
Frequently Asked Questions
Where can I buy YAGEO PNP3WVJT730R1?
You can click on the BUY or RFQ button to purchase PNP3WVJT730R1 from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part PNP3WVJT730R1?
You can download the PNP3WVJT730R1 datasheet or visit the YAGEO website for support.
Who is the manufacturer of PNP3WVJT730R1?
YAGEO
