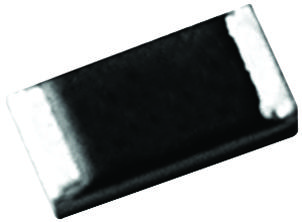

YAGEO RC0402JR071K5L Chip Resistor Surface Mount
The Yageo RC_L series resistors are general-purpose thick film chip resistors with lead-free terminations, produced through a thick film process. They cover a resistance range from 1 ohm to 100 MΩ, available in E24 and E96 decade values. These resistors are built on high-grade ceramic bodies and come in various standard case sizes, including EIA 0075, 0100, 0201, 0402, 0603, 0805, 1206, 1210, 1218, 2010, and 2512. They are designed for space-saving on PCBs, rated for voltages between 10V and 200V, and have power ratings up to 2W. Tolerance classes include ±0.1%, ±0.5%, ±1%, and ±5%. The resistors ensure high reliability for components and equipment, with production materials free from forbidden substances. Operating temperature ranges from -55°C to 155°C for larger sizes and up to 125°C for smaller sizes.
YAGEO RC0402JR071K5L Chip Resistor Surface Mount Specifications:
- Resistance Range: 1Ω to 100MΩ
- Tolerance: ±0.1%, ±0.5%, ±1%, ±5%
- Operating Temperature: -55°C to 155°C (sizes 0075 to 2512), up to 125°C (smaller sizes)
- Power Ratings: Up to 2W depending on size
- Voltage Range: 10V to 200V
- Construction: High-grade ceramic body with thick film resistive element
- Lead-Free Terminations: Matte tin on Ni barrier
- Materials: RoHS compliant, halogen free, no forbidden substances
- Sizes: 0075, 0100, 0201, 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512
- Marking: E-24 and E-96 series marking conventions
- Applications: General electronic circuitry, space-saving PCB design
Buy the Yageo Series RC_L Chip Resistor: RC0402JR071K5L
Order Yageo RC0402JR071K5L chip resistor online today to benefit from high reliability, precise resistance, and a wide resistance range. This lead-free, RoHS compliant resistor is suitable for space-efficient PCB designs. It features multiple tolerances, sizes, and high-temperature operation of up to 155°C. Perfect for general purpose electronic applications, it offers excellent environmental safety, consistent performance, and long-term stability. Purchase online now for quick delivery and guaranteed quality at competitive prices.
Buy Yageo RC0402JR071K5L now and experience unmatched reliability and performance with high precision, broad resistance, and extensive size options.
Frequently Asked Questions
Where can I buy YAGEO RC0402JR071K5L?
You can click on the BUY or RFQ button to purchase RC0402JR071K5L from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC0402JR071K5L?
You can download the RC0402JR071K5L datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC0402JR071K5L?
YAGEO
