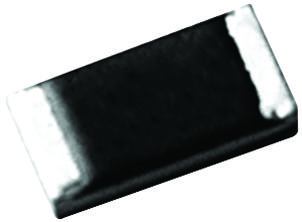

YAGEO RC0402JR07220RL Surface Mount Chip Resistor
The Yageo RC_L series resistors are general-purpose thick film chip resistors with lead-free terminations manufactured using a thick film process. They feature a resistance range from 1 ohm to 100 megaohms, covering E24 and E96 decade values. These resistors are constructed on a high-grade ceramic body, ensuring high reliability. They are available in various standard case sizes including 0402, 0603, 0805, 1206, 1210, 1218, 2010, and 2512, enabling compact PCB design. The rated voltage spans from 10V to 200V, with a maximum power rating of 2W. Tolerance options include ±0.1%, ±0.5%, ±1%, and ±5%. They operate reliably within temperature ranges of -55°C to 155°C (for sizes 0402 to 2512) or -55°C to 125°C (for smaller sizes). Manufactured without forbidden materials, these resistors are suitable for various electronic applications requiring high reliability.
YAGEO RC0402JR07220RL Surface Mount Chip Resistor Specifications:
- Resistance range: 1Ω to 100MΩ
- Tolerance options: ±0.1%, ±0.5%, ±1%, ±5%
- Operating temperature: -55°C to 155°C (sizes 0402-2512), -55°C to 125°C (smaller sizes)
- Rated voltage: 10V to 200V
- Maximum power: 2W
- Construction: Ceramic body with internal metal electrodes and thick film resistive element
- Size options: 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512
- RoHS compliant, halogen free, environmentally friendly
- Manufactured without forbidden materials for high reliability
- Suitable for general electronic circuit applications
Buy the Yageo Series RC_L Resistors: RC0402JR07220RL
Order Yageo RC0402JR07220RL resistors online today and experience high reliability with precise resistance values up to 100 megaohms. These surface-mount chip resistors are designed for versatile electronic applications, offering lead-free construction for environmental compliance. With tolerance options from ±0.1% to ±5%, rated voltage up to 200V, and power ratings of 1/16W to 2W depending on size, they ensure optimal performance across temperature ranges of -55°C to 155°C. Perfect for compact PCB designs, buy now for fast delivery and guaranteed quality.
Get Yageo RC0402JR07220RL resistors today—built for precision and long-lasting durability in your electronic projects.
Frequently Asked Questions
Where can I buy YAGEO RC0402JR07220RL?
You can click on the BUY or RFQ button to purchase RC0402JR07220RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC0402JR07220RL?
You can download the RC0402JR07220RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC0402JR07220RL?
YAGEO
