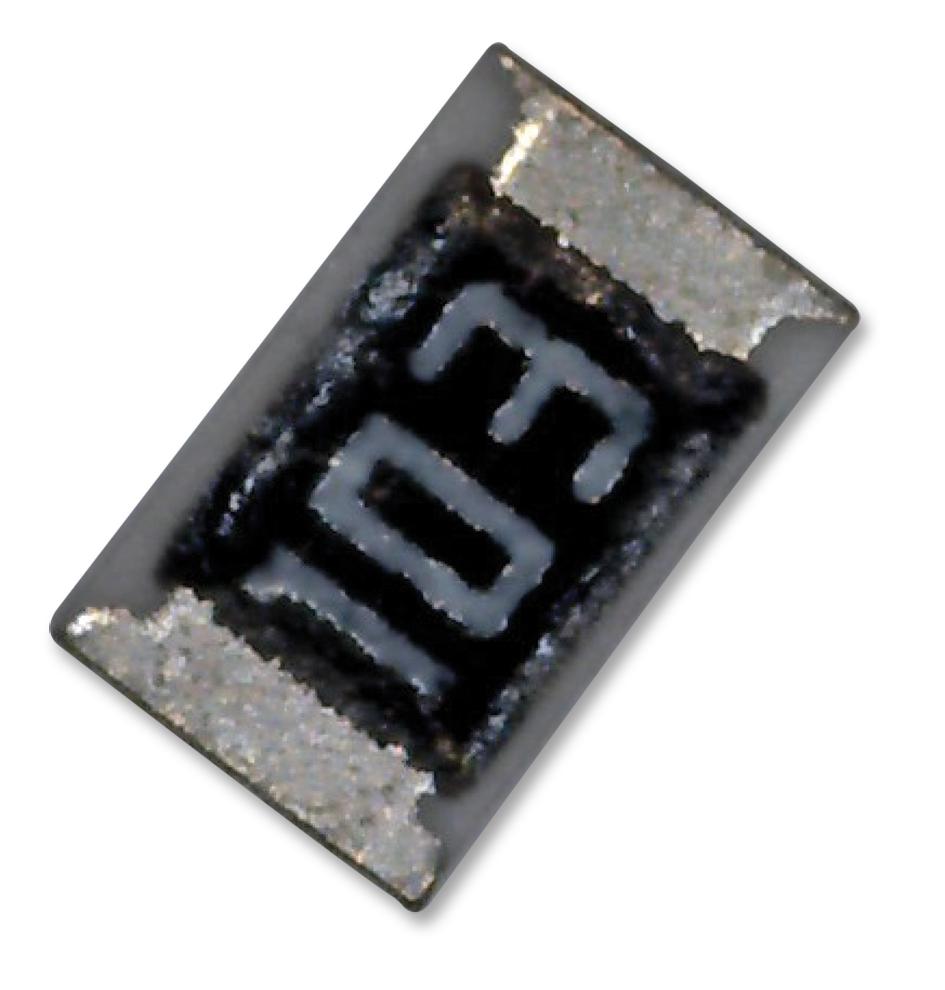

YAGEO RC0603FR0712KL Surface Mount Resistor
The RC0603FR0712KL is a surface-mount chip resistor from the YAGEO RC series, offering reliable performance with RoHS compliance and halogen-free epoxy. It features high environmental resistance, low temperature coefficient, and broad operating temperature range from -55°C to +155°C. Designed on a ceramic body with thick film resistive element and laser trimming, this resistor provides precise resistance values, robust construction, and space-saving dimensions. It is suitable for all general-purpose applications requiring stable electrical characteristics and high durability in compact designs.
YAGEO RC0603FR0712KL Surface Mount Resistor Specifications:
- Construction: Ceramic body, thick film resistive element, laser trimmed, epoxy coating, lead-free matte tin terminations.
- Dimensions: RC0603 - Length 1.60±0.10mm, Width 0.80±0.10mm, Height 0.45±0.10mm; other sizes vary as per datasheet.
- Temperature Range: -55°C to +155°C.
- Power Rating: 0.125W at 70°C for RC0603 size, up to 0.4W for larger sizes like RC1210, RC2010, RC2512.
- Resistance Values: 2-4 digits indicating resistance, e.g., 10KQ, 100KQ, with decimal points indicated by R or M.
- Tolerance: +0.1%, +0.5%, +1%, +5%.
- Resistance Coefficient: Typically around ±200 ppm/°C.
- Electrical Characteristics: Max operating voltage varies with size, e.g., 25V for RC0603, 200V for RC1210.
- Environmental Resistance: RoHS compliant, halogen-free, meets environmental standards, resistant to moisture, thermal cycling, and mechanical stress.
- Reliability: Suitable for high-reliability electronic applications, including industrial and automotive systems.
Buy the Buy YAGEO RC Series Part Number RC0603FR0712KL Online
Order the YAGEO RC0603FR0712KL surface-mount resistor online today to ensure high-quality, reliable performance in your electronic designs. With RoHS compliance and halogen-free epoxy, this resistor offers excellent environmental resistance and precise resistance values. Its small footprint makes it perfect for compact, space-efficient circuits. Suitable for general-purpose applications, it provides stable electrical characteristics even in harsh conditions. Purchase now for fast delivery and superior durability that meets industry standards and enhances your manufacturing process.
Buy YAGEO RC0603FR0712KL now and experience unmatched reliability and space-saving performance for your electronic projects.
Frequently Asked Questions
Where can I buy YAGEO RC0603FR0712KL?
You can click on the BUY or RFQ button to purchase RC0603FR0712KL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC0603FR0712KL?
You can download the RC0603FR0712KL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC0603FR0712KL?
YAGEO
