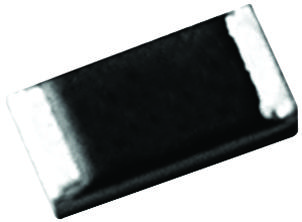

YAGEO RC0603JR0710RL chip resistor
The RC0603JR-0710RL from Yageo (Phycomp) is a general-purpose chip resistor belonging to the RC_L series. It features a 0603 (1608 metric) EIA size package, constructed on a high-grade ceramic body with internal metal electrodes that connect to a thick film resistive element. The resistor has a resistance value of 10 ohms with a tolerance of ±5%. It can operate at a maximum voltage of 75V and has a power rating of 100mW. The temperature coefficient is ±200ppm/°C, and it operates within a temperature range of -55°C to 155°C. Designed for high reliability in components and equipment, it does not incorporate forbidden materials. Its small size helps save PCB space.
YAGEO RC0603JR0710RL chip resistor Specifications:
- Size: 0603 (1608 metric)
- Resistance: 10Ω
- Tolerance: ±5%
- Maximum Voltage: 75V
- Power Rating: 100mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature Range: -55°C to 155°C
- Construction: High-grade ceramic with thick film resistive element
- Material: Halogen Free Epoxy
- RoHS compliant
- Environmental compliance: Does not contain forbidden materials
- Dimensions: Length approximately 1.6mm, width approximately 0.8mm, height approximately 0.5mm
Buy the Yageo Series RC_L Chip Resistor: RC0603JR0710RL
Purchase the Yageo RC0603JR-0710RL chip resistor online today. This small, surface-mount component offers a resistance of 10 ohms with ±5% tolerance, rated for 75V maximum voltage, making it ideal for high reliability electronic circuits. Its compact 0603 size helps save PCB space, while its high-quality ceramic construction ensures durability and stable performance across a wide temperature range from -55°C to 155°C. RoHS compliant and free from forbidden materials, this resistor guarantees environmental safety and consistent electrical characteristics for various electronic projects and manufacturing needs.
Get Yageo RC0603JR0710RL today—built for precision and long-lasting durability in surface mount applications.
Frequently Asked Questions
Where can I buy YAGEO RC0603JR0710RL?
You can click on the BUY or RFQ button to purchase RC0603JR0710RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC0603JR0710RL?
You can download the RC0603JR0710RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC0603JR0710RL?
YAGEO
