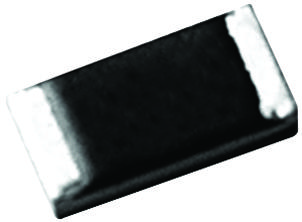

YAGEO RC0603JR0751RL Surface Mount Resistor
The RC0603 resistor is a high-quality, RoHS-compliant surface mount chip resistor designed for general-purpose electronic applications. Constructed on a ceramic body with thick film resistive elements, it features lead-free terminals with matte tin plating, ensuring high reliability and environmental safety. Suitable for space-constrained PCB designs, it offers a resistance range from 1 ohm to 22 megaohms, with various tolerances and temperature coefficients. The resistor supports a maximum voltage of 50V and a continuous power rating of 1/10 W, making it ideal for modern electronic devices requiring stable and precise resistance values.
YAGEO RC0603JR0751RL Surface Mount Resistor Specifications:
- Size: 0603 (mm): L 1.60 ±0.10, W 0.80 ±0.10, H 0.45 ±0.10
- Resistance Range: 1Ω to 22MΩ
- Resistance Tolerance: ±1% (E24/E96 series), ±5% (Jumper)
- Temperature Coefficient: ±100 ppm/°C (for 10Ω to 1MΩ), ±200 ppm/°C (for 1MΩ to 22MΩ)
- Maximum Working Voltage: 50V
- Rated Power: 1/10 W at 70°C
- Soldering Profile: Reflow, with lead-free solder100°C to 250°C, 3 seconds
- Construction: Ceramic body with internal metal electrodes, overcoated with glass and protected by epoxy
- Terminations: Matte tin-plated Ni barrier
- Operating Temperature Range: -55°C to +155°C
- Reliability: Meets MIL-STD-202G and IEC standards
Buy the Buy YAGEO RC0603JR0751RL Part Number 0751RL Online
Order the YAGEO RC0603JR0751RL surface mount resistor online today for your electronic projects. This RoHS-compliant, high-reliability resistor offers a resistance range from 1 ohm to 22 megaohms, with precise tolerance options and a maximum voltage of 50V. Its compact 0603 size makes it ideal for space-constrained PCB designs. Featuring lead-free, environmentally friendly production, it ensures durability and consistent performance across a wide temperature range, making it an excellent choice for manufacturing, consumer electronics, and industrial applications.
Get YAGEO RC0603JR0751RL today—highly reliable, RoHS-compliant surface mount resistor built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy YAGEO RC0603JR0751RL?
You can click on the BUY or RFQ button to purchase RC0603JR0751RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC0603JR0751RL?
You can download the RC0603JR0751RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC0603JR0751RL?
YAGEO
