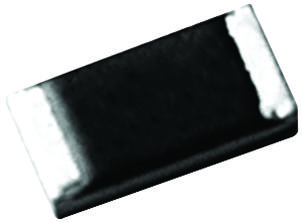

YAGEO RC0603JR07680RL Surface Mount Chip Resistor
Surface mount chip resistor with high reliability and environmental compliance, suitable for general purpose applications. Features lead-free termination, RoHS and halogen-free materials, and a ceramic body with thick film resistive layer. Available in various sizes including 0603, with resistance values up to 22MΩ, tolerance options of ±1%, ±0.5%, and ±10%, and temperature coefficients suitable for demanding electronic designs. Ideal for compact, high-performance circuit boards requiring precise resistance and durability under thermal and mechanical stress.
YAGEO RC0603JR07680RL Surface Mount Chip Resistor Specifications:
- Size: 0603 (1.6mm x 0.8mm), Resistance range: up to 22MΩ
- Tolerance: ±1%, ±0.5%, ±10%
- Temperature Coefficient: ±200ppm/°C (E24/E96 series)
- Power Rating: 0.1W to 0.25W depending on size
- Material: Ceramic substrate with thick film resistive layer, lead-free terminations
- Operating Temperature Range: -55°C to +155°C
- Maximum Working Voltage: Calculated based on resistance and power rating
- Environmental Compliance: RoHS, halogen-free, Pb-glass exempted
- Construction: Internal metal electrodes, laser trimmed for accuracy, sealed with protective epoxy
- Packaging: Reels with quantities up to 20,000 units, suitable for automated SMT assembly
Buy the YAGEO Series RC Surface Mount Resistors: RC0603JR07680RL
Purchase the YAGEO RC0603JR07680RL surface mount chip resistor online today and enjoy fast shipping and competitive pricing. Ideal for high-density PCB designs, this resistor offers excellent environmental compliance with RoHS and halogen-free materials. Its small size of 0603 and resistance up to 22MΩ ensure precise control in your electronic applications. Durable and reliable under thermal and mechanical stress, it is perfect for demanding industrial and consumer electronic products. Order now to enhance your circuit performance with trusted YAGEO quality.
Buy YAGEO RC0603JR07680RL now and experience unmatched reliability and precise resistance for your advanced electronic projects.
Frequently Asked Questions
Where can I buy YAGEO RC0603JR07680RL?
You can click on the BUY or RFQ button to purchase RC0603JR07680RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC0603JR07680RL?
You can download the RC0603JR07680RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC0603JR07680RL?
YAGEO
