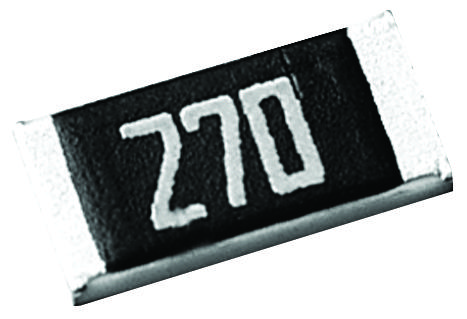

YAGEO RC0805FR1015KL Surface Mount Chip Resistor
The RC0805 surface mount chip resistor offers precise resistance values with high reliability, low T.C.R, and RoHS compliance, making it suitable for all general electronic applications. Constructed on a ceramic substrate with thick film resistive elements, it features lead-free tin-alloy terminals for environmental safety. With a compact size of 2.00 x 1.25 mm, it provides power ratings of 1/8W to 1/4W and operates effectively across -55°C to +155°C, ensuring durability in diverse temperature conditions. Ideal for high-density PCB designs, it supports precise impedance and stability required in modern electronic circuits.
YAGEO RC0805FR1015KL Surface Mount Chip Resistor Specifications:
- Dimensions: Length 2.00 mm, Width 1.25 mm, Height 0.50 mm
- Resistance Range: Up to 22 MΩ with 1% and 0.5% Tolerance options
- Power Rating: 1/8W to 1/4W depending on model
- Temperature Range: -55°C to +155°C
- Construction: Ceramic substrate with thick film resistive layer
- Terminals: Matte tin on Ni barrier, lead-free compliant
- RoHS compliant and halogen-free
- Support for high-density PCB and sensitive electronic circuits
- Operate reliably under steady state, thermal cycling, moisture, and mechanical shock
- Maximum Working Voltage: Calculated based on resistance and power ratings
Buy the YAGEO Series RC Resistor: RC0805FR1015KL
Order the YAGEO RC0805FR1015KL surface mount resistor online today and enjoy reliable performance in your electronic designs. This resistor offers precise resistance values, high temperature durability, and RoHS compliance, making it ideal for compact PCB applications. Designed with a ceramic body and thick film resistive layer, it guarantees stability and environmental safety. Perfect for high-density circuits, it withstands thermal cycling, moisture, and mechanical stress. Upgrade your project with this trusted resistor and ensure optimal performance and longevity.
Get YAGEO RC0805FR1015KL today—built for precision and long-lasting durability in compact electronic circuits.
Frequently Asked Questions
Where can I buy YAGEO RC0805FR1015KL?
You can click on the BUY or RFQ button to purchase RC0805FR1015KL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC0805FR1015KL?
You can download the RC0805FR1015KL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC0805FR1015KL?
YAGEO
