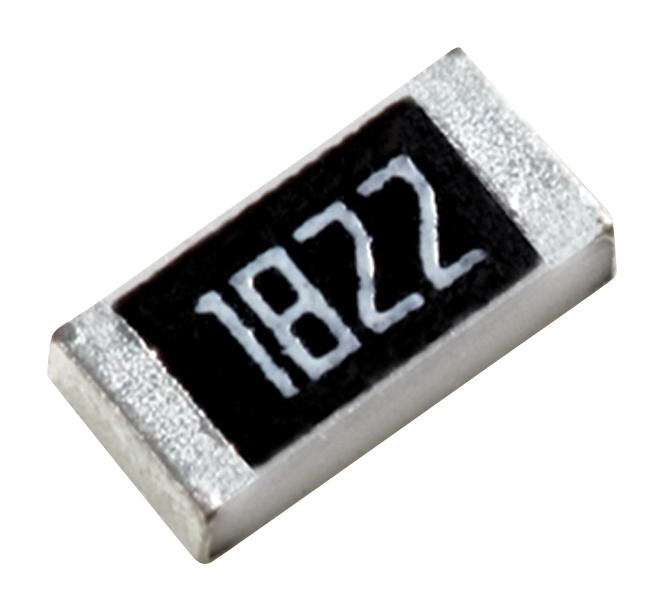

YAGEO RC0805JR070RL Surface-Mount Chip Resistor
The RC0805JR070RL is a high-reliability surface-mount chip resistor designed for general-purpose electronic applications. Featuring a compact 0805 size, it offers precise resistance with tight tolerance and excellent thermal stability. Constructed on a ceramic substrate with thick film resistive elements, the resistor is laser trimmed and covered with a protective epoxy coating to ensure environmental resistance. It has lead-free, RoHS-compliant terminals, making it suitable for harsh industrial environments while saving PCB space and providing high component and equipment reliability.
YAGEO RC0805JR070RL Surface-Mount Chip Resistor Specifications:
- Size: 0805
- Tolerance: +0.1%
- Temperature Coefficient of Resistance: ±200 ppm/°C
- Power Rating at 70°C: 0.125W
- Maximum Operating Temperature: -55°C to +155°C
- Construction: Ceramic substrate with thick film resistive element, laser trimmed, epoxy coated
- Terminations: Lead-free, matte tin plating
- Dimensions: Length 2.0 mm, Width 1.25 mm, Height 0.5 mm
- Resistive Element: Noble metal embedded in glass, protected from environmental influences
- Compliance: RoHS, Halogen free
- Maximum Resistance Range: up to 1Ω (standard), depending on resistance value
- Environmental Resistance: Suitable for harsh industrial conditions due to coating and material composition
- Marking: E24 series; first two digits significant figures, third digit zeros
- Packaging: 10,000 units in 7-inch reel
Buy the YAGEO RC0805JR070RL – Reliable Resistor for Industrial Applications
Discover the YAGEO RC0805JR070RL series resistor, a compact, RoHS-compliant component designed for high reliability in industrial applications. Its precise resistance, lead-free terminals, and robust construction ensure excellent thermal stability and environmental resistance.ideal for circuit protection, automation, and industrial control systems. With a size of 0805, it saves PCB space while maintaining superior performance. Order online today and equip your electronic projects with this high-quality resistor for dependable, long-lasting operation in challenging environments.
Order your YAGEO RC0805JR070RL series resistor today and enhance your industrial electronics with dependable performance and high environmental resistance.
Frequently Asked Questions
Where can I buy YAGEO RC0805JR070RL?
You can click on the BUY or RFQ button to purchase RC0805JR070RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC0805JR070RL?
You can download the RC0805JR070RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC0805JR070RL?
YAGEO
