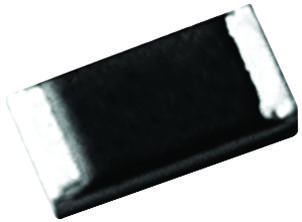

YAGEO RC0805JR0733ML Surface Mount Resistor
The RC0805 surface mount chip resistor offers high reliability and environmentally friendly features, including halogen-free epoxy and RoHS compliance. Constructed on a ceramic body with thick film resistive elements, it features precise resistance values through laser trimming. Suitable for general purpose applications, it provides a compact design with multiple resistance and power ratings, making it ideal for space-saving PCB design. Certified for durability, the resistor supports wide operating temperature ranges from -55°C to +155°C, with various resistance tolerances and packaging options. Its robust construction ensures stability under electrical and thermal stresses, suitable for demanding electronic circuits.
YAGEO RC0805JR0733ML Surface Mount Resistor Specifications:
- Type: RC0805
- Dimensions: Length 2.00±0.10mm, Width 1.25±0.10mm, Height 0.50±0.10mm
- Resistance Range: 10Ω to 10MΩ, with resistance tolerances of 1%, 0.5%, and 5%
- Power Rating: 1/8W and 1/4W at 70°C
- Operating Temperature Range: -55°C to +155°C
- Maximum Working Voltage: 200V
- Environmental Compliance: RoHS, Halogen-Free Epoxy
- Construction: Ceramic substrate with thick film resistive layer, laser-trimmed for accuracy
- Terminations: Matte tin on Ni barrier, suitable for surface mounting
- Reliability: Designed for high stability under electrical and thermal stress
- Applications: General purpose electronic circuits, space-efficient PCB designs
Buy the YAGEO Series RC0805 Surface Mount Resistor: RC0805JR0733ML
Order YAGEO RC0805JR0733ML surface mount resistor online today for reliable performance in your electronic projects. Featuring RoHS compliance, halogen-free epoxy, and ceramic construction, this resistor offers high stability across a wide temperature range from -55°C to +155°C. With resistance options from 10Ω to 10MΩ and power ratings of 1/8W and 1/4W, it suits general purpose applications requiring compact design and high reliability. Rapid online purchase ensures your PCB assembly benefits from YAGEO’s quality and durability, keeping your electronic devices performing optimally for years.
Get YAGEO RC0805JR0733ML today—built for precision and long-lasting durability in electronic circuits.
Frequently Asked Questions
Where can I buy YAGEO RC0805JR0733ML?
You can click on the BUY or RFQ button to purchase RC0805JR0733ML from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC0805JR0733ML?
You can download the RC0805JR0733ML datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC0805JR0733ML?
YAGEO
