YAGEO RC0805JR0747RL Surface Mount Resistor
The Yageo RC_L series resistors are general-purpose, thick film chip resistors with lead-free terminations produced through a thick film process. They feature a resistance range from 1 ohm to 100 megaohms, covering E24 and E96 series values. Constructed on high-grade ceramic bodies, these resistors are available in various standard case sizes including 0075, 0100, 0201, 0402, 0603, 0805, 1206, 1210, 1218, 2010, and 2512. They are designed to save PCB space with small sizes, rated for voltages from 10V to 200V, and have a maximum power rating of 2W. Tolerance options include ±0.1%, ±0.5%, ±1%, and ±5%, ensuring high reliability for components and equipment. The manufacturing process excludes forbidden materials, and temperature ranges are from -55°C to 155°C for larger sizes and up to 125°C for smaller formats.
YAGEO RC0805JR0747RL Surface Mount Resistor Specifications:
- Resistance Range: 1Ω to 100MΩ
- Series: E24 and E96
- Construction: High-grade ceramic body with thick film resistive element
- Size Options: 0075, 0100, 0201, 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512
- Power Rating: Up to 2W at 70°C
- Rated Voltage: 10V to 200V
- Tolerance: ±0.1%, ±0.5%, ±1%, ±5%
- Maximum Operating Temperature: -55°C to 155°C (larger sizes), up to 125°C (smaller sizes)
- Compliance: RoHS, Halogen Free
- Termination: Lead-free, matte tin on Ni barrier
- Environmental: Excludes forbidden materials, environmentally friendly

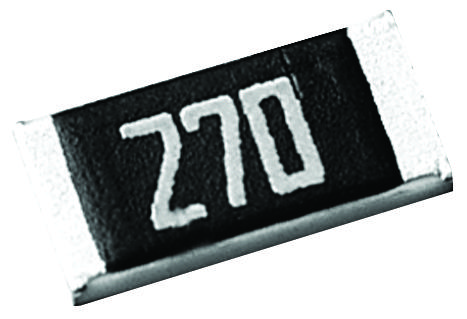

Buy the Buy Yageo RC_L Series Resistors Part Number RC0805JR0747RL Online
Purchase your Yageo RC0805JR0747RL series surface mount resistor online today. These robust resistors offer precise resistance values from 1Ω to 100MΩ, with tolerances as tight as ±0.1%. Designed for high reliability and environmental compliance, they are suitable for all general-purpose applications. With sizes ranging from 0075 to 2512 and power ratings up to 2W, these resistors ensure optimal space-saving and performance in your electronic designs. Buy now for fast delivery and trusted quality.
Order your Yageo RC0805JR0747RL series high-performance surface mount resistor today and enhance your electronic projects with reliable, eco-friendly components.
Frequently Asked Questions
Where can I buy YAGEO RC0805JR0747RL?
You can click on the BUY or RFQ button to purchase RC0805JR0747RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC0805JR0747RL?
You can download the RC0805JR0747RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC0805JR0747RL?
YAGEO
