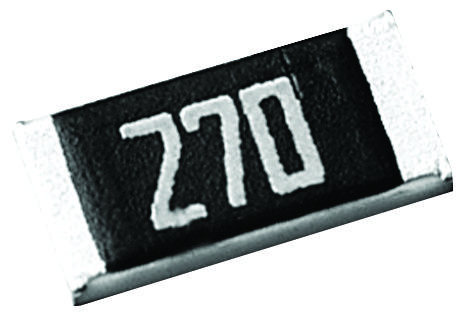

YAGEO RC0805JR075K1L Chip Resistor
High-quality surface mount thick film chip resistor ideal for general-purpose applications. Constructed on a ceramic substrate with lead-free, halogen-free epoxy. Features include RoHS compliance, environmentally friendly design, and high reliability. Available in various sizes with resistance values coded in standard marking methods, suitable for circuit protection, measurement, and precision electronic devices. Designed for use in compact PCB layouts, offering excellent stability, low TCR, and robust performance across a wide temperature range. Suitable for automated assembly and long-term operation.
YAGEO RC0805JR075K1L Chip Resistor Specifications:
- Series: RC0805
- Size: 0805 (2.0 x 1.25 mm)
- Power Rating: 1/8W at 70°C
- Resistance Range: 100Ω to 1MΩ
- Tolerance: ±1%, ±0.5%, ±10%
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Maximum Working Voltage: 200V
- Max Overload Voltage: 430V
- Construction: Ceramic substrate with thick film resistor element
- Terminations: Matte tin on Ni barrier
- Packaging: 10000 pcs in tape reel (7-inch diameter), suitable for machine placement
- Compliance: RoHS, Halogen Free
Buy the YAGEO RC0805 – Reliable Chip Resistor for Industrial Applications
Purchase the YAGEO RC0805 surface mount chip resistor online now to ensure your electronic projects benefit from high reliability, RoHS compliance, and precise resistance values. Designed for easy integration into compact PCB layouts, it offers excellent stability, low TCR, and durable performance over a wide range of temperatures. Perfect for industrial electronics, measurement devices, and circuit protection applications. Order in reels for automated assembly, and enjoy fast shipment and quality assurance directly from authorized distributors.
Get YAGEO RC0805 today—built for precision and long-lasting durability in your electronic circuits.
Frequently Asked Questions
Where can I buy YAGEO RC0805JR075K1L?
You can click on the BUY or RFQ button to purchase RC0805JR075K1L from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC0805JR075K1L?
You can download the RC0805JR075K1L datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC0805JR075K1L?
YAGEO
