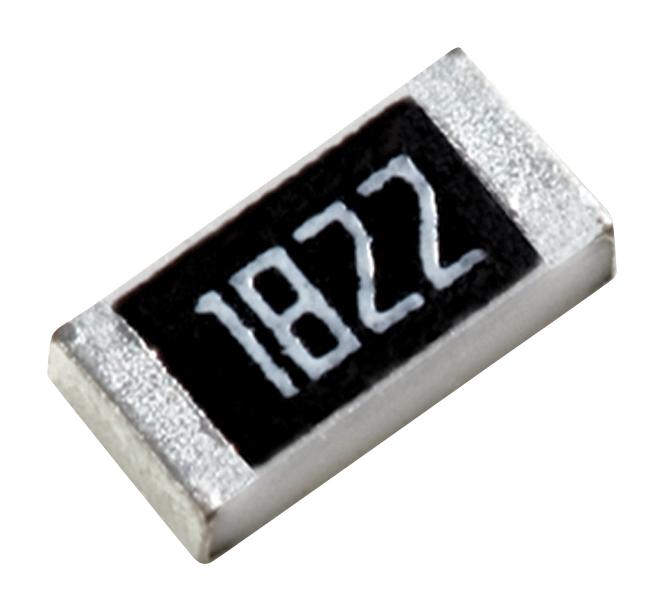

YAGEO RC1206FR07470RL Surface Mount Chip Resistor
The RC1206 chip resistor is a surface mount component designed for general-purpose electronic applications. Made with thick film process and lead-free terminations, it offers high reliability, environmental friendliness, and PCB space savings. Certified RoHS compliant, it features a ceramic body with internal metal electrodes, laser trimming for precise resistance, and protective epoxy coating. Suitable for mounted circuit design, its dimensions are 3.10 mm x 1.60 mm x 0.55 mm, with resistance values from the E24, E96, and E-24 series, and operating temperature range from -55°C to +155°C. It supports various power ratings, voltage, and tolerance options for diverse applications.
YAGEO RC1206FR07470RL Surface Mount Chip Resistor Specifications:
- Dimensions: Length 3.10 mm, Width 1.60 mm, Height 0.55 mm
- Material: Ceramic body with metal electrodes, epoxy protective coat
- Resistance Series: E24, E96, E-24; Resistance values: 10kΩ (10KQ), 100kΩ (100KQ)
- Temperature Range: -55°C to +155°C
- Power Ratings: 0.063W (0451/50V), 0.125W (0805/100V), 0.2W (1206/200V), 0.4W (1210/400V), 0.5W (2010/500V), 1W (2512/1000V)
- Tolerance: ±0.1%, ±0.5%, ±1%, ±5%; Markings vary by series
- Taping Reel: 7-inch or 13-inch diameter, quantities up to 80,000 units
- Environmental Compliance: RoHS, Halogen free
- Construction: Thick film resistor on ceramic substrate, laser-trimmed for accuracy, protected by epoxy coating
- Electrical Characteristics: Support voltage up to 500V, maximum overload voltage specified per series
Buy the YAGEO Series RC1206 Resistor: RC1206FR07470RL
Order the reliable surface mount chip resistor from YAGEO now to ensure high performance and environmental safety in your electronic designs. These RoHS compliant resistors feature precise resistance values, multiple tolerance options, and support high voltages across various power ratings. Designed for general-purpose applications, they offer excellent thermal stability, environmental friendliness, and PCB space savings. Easily available in standard taping formats, these components guarantee quality and durability, making them ideal for manufacturing, repair, and prototyping of electronic devices with confidence.
Buy YAGEO RC1206 now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy YAGEO RC1206FR07470RL?
You can click on the BUY or RFQ button to purchase RC1206FR07470RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC1206FR07470RL?
You can download the RC1206FR07470RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC1206FR07470RL?
YAGEO
