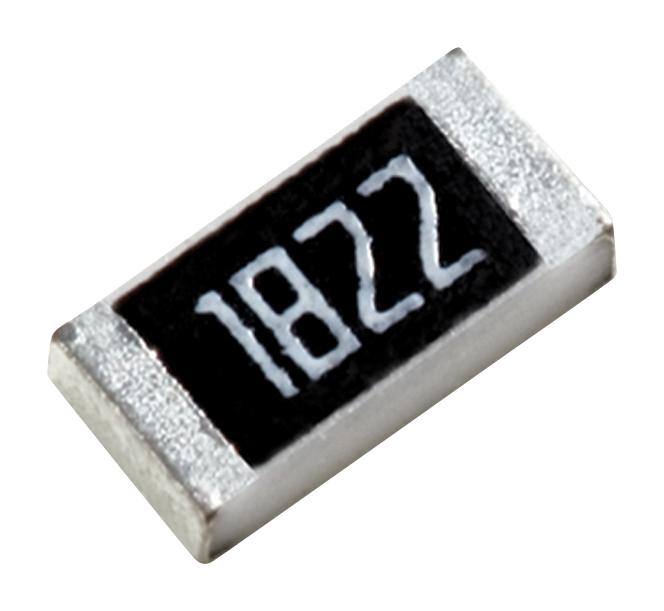

YAGEO RC1206FR0747RL Surface Mount Chip Resistor
The RC1206 chip resistor is a surface-mount, RoHS compliant, lead-free resistor designed for all general-purpose applications. It features a ceramic body construction with noble metal embedded resistive elements, laser trimming for accurate resistance, and a protective epoxy coating. The resistor measures approximately 3.1 mm in length, 1.6 mm in width, with a height of 0.55 mm. It operates from -55°C to +155°C, with a maximum voltage of 200V and power rating of 1/4 W at 70°C. Suitable for high-reliability circuits, it offers excellent environmental resistance and size saving on PCB layouts.
YAGEO RC1206FR0747RL Surface Mount Chip Resistor Specifications:
- Dimensions: Length 3.1 mm, Width 1.6 mm, Height 0.55 mm, Termination: Matte tin on Ni barrier
- Resistance Range: 1Ω to 22 MΩ, Tolerance: ±1% or ±5%, Resistance Code: 4-digit for E-24/E-96 series
- Power Rating: 1/4 W at 70°C, Operating Temperature: -55°C to +155°C
- Maximum Working Voltage: 200V, Maximum Overload Voltage: 400V, Dielectric Withstanding Voltage: 500V
- Material: Ceramic substrate with noble metal resistor element, RoHS compliant, Halogen Free Epoxy coating
- Soldering Profile: Recommended temperature profile between 55°C to 155°C, Solderability rated for 295% coverage
- Packaging: Paper taping reel, 7 inch (5,000 units), 10 inch (10,000 units), 13 inch (20,000 units)
Buy the YAGEO Series RC1206 Resistor: RC1206FR0747RL
Purchase the YAGEO RC1206 surface mount chip resistor online to enhance your electronic assembly with high reliability, RoHS compliance, and lead-free construction. This resistor offers excellent environmental resistance, consistent performance across a wide temperature range, and ease of installation. Ideal for general-purpose applications, it saves PCB space while ensuring durability. Buy now for quick delivery and guaranteed quality, perfect for your manufacturing, repair, or prototyping needs—trust YAGEO for dependable electronic components.
Order your YAGEO Series RC1206 resistor today and ensure reliable performance for your electronic projects with high precision and environmentally friendly design.
Frequently Asked Questions
Where can I buy YAGEO RC1206FR0747RL?
You can click on the BUY or RFQ button to purchase RC1206FR0747RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC1206FR0747RL?
You can download the RC1206FR0747RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC1206FR0747RL?
YAGEO
