YAGEO RC2512JK070RL Thick Film Chip Resistor
The Yageo RC_L series resistors are general-purpose thick film chip resistors with lead-free terminations manufactured using a thick film process. They feature a resistance range from 1 ohm to 100 megaohms, covering E24 and E96 decade values. Constructed on a high-grade ceramic body, these resistors are available in various case sizes, including EIA 0075, 0100, 0201, 0402, 0603, 0805, 1206, 1210, 1218, 2010, and 2512, which help save PCB space. They have rated voltages from 10V to 200V and maximum power ratings of 2W. Tolerance options include ±0.1%, ±0.5%, ±1%, and ±5%. Designed for high reliability, these resistors do not use forbidden materials and operate within temperature ranges from -55°C to 155°C (for RC0402 to RC2512) and -55°C to 125°C (for smaller sizes).
YAGEO RC2512JK070RL Thick Film Chip Resistor Specifications:
- Resistance Range: 1Ω to 100MΩ
- Power Rating: 2W
- Rated Voltage: 10V to 200V
- Temperature Range: -55°C to 155°C (RC0402 to RC2512), -55°C to 125°C (smaller sizes)
- Tolerance: ±0.1%, ±0.5%, ±1%, ±5%
- Construction: Ceramic body with thick film resistive layer
- Lead-Free Terminations: Yes
- Resistance Values: E24 and E96 series, 2-4 digits indicating value
- Markings: EIA-96, E24 marking standards
- Size Options: 0075, 0100, 0201, 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512
- Environmental Compliance: RoHS compliant, halogen-free
- Operating Temperature: -55°C to 155°C for larger sizes, -55°C to 125°C for smaller sizes

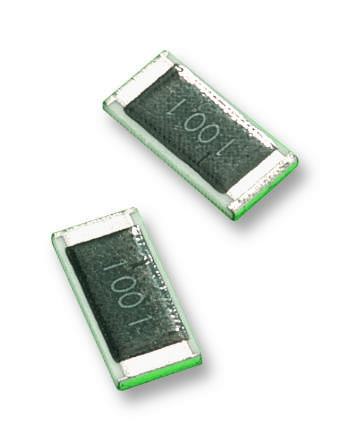

Buy the Buy Yageo RC2512JK070RL Resistor Part Number 070RL Online
Enhance your electronics with the high-quality Yageo thick film chip resistor. Perfect for general-purpose applications, it offers a resistance range up to 100 megaohms, with power ratings up to 2W. This resistor features lead-free, RoHS-compliant construction and operates reliably in temperatures from -55°C to 155°C. Available in multiple sizes like 2512, 1206, and 0603, it ensures space-saving on PCB layouts. Easy to order online, these resistors deliver precision, durability, and environmentally friendly features for all your electronic projects.
Get Yageo RC2512JK070RL resistor today—built for high reliability, precise resistance values, and long-lasting durability in PCB applications.
Frequently Asked Questions
Where can I buy YAGEO RC2512JK070RL?
You can click on the BUY or RFQ button to purchase RC2512JK070RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RC2512JK070RL?
You can download the RC2512JK070RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RC2512JK070RL?
YAGEO
