YAGEO RE0603DRE07100KL Surface Mount Chip Resistor
These ultra-precision thick film chip resistors are RoHS compliant and halogen-free, suitable for all general-purpose applications. Constructed on high-grade ceramic with lead-free Ni/tin terminations, they offer high reliability and environmentally friendly features. Available in sizes from 0402 to 1206 with tight tolerance and low TCR, they deliver excellent performance in space-constrained surface-mount designs. These resistors are rated for operating temperatures from -55°C to +155°C, making them ideal for demanding industrial and electronic applications requiring high stability and durability.
YAGEO RE0603DRE07100KL Surface Mount Chip Resistor Specifications:
- Size: 0402/0603/0805/1206
- Tolerance: +1% (F), +0.5% (D)
- Temperature Coefficient of Resistance: +50 ppm/T
- Operating Temperature Range: -55°C to +155°C
- Maximum Working Voltage: 50V for 0402/0603, 150V for 0805, 200V for 1206
- Maximum Overload Voltage: 100V for 0402/0603, 300V for 0805, 400V for 1206
- Resistance Range: 102 to 1 MΩ
- Construction: Ceramic body with internal metal electrodes, resistive glaze, and Ni/tin external terminations
- Dimensions: Length 1.00+0.05 mm (0402), 1.60+0.10 mm (0603), 2.00+0.10 mm (0805), 3.10+0.10 mm (1206)
- RoHS and halogen-free compliance, lead-free termination
- Rated Power: 1/16W (0402), 1/10W (0603), 1/8W (0805), 1/4W (1206)

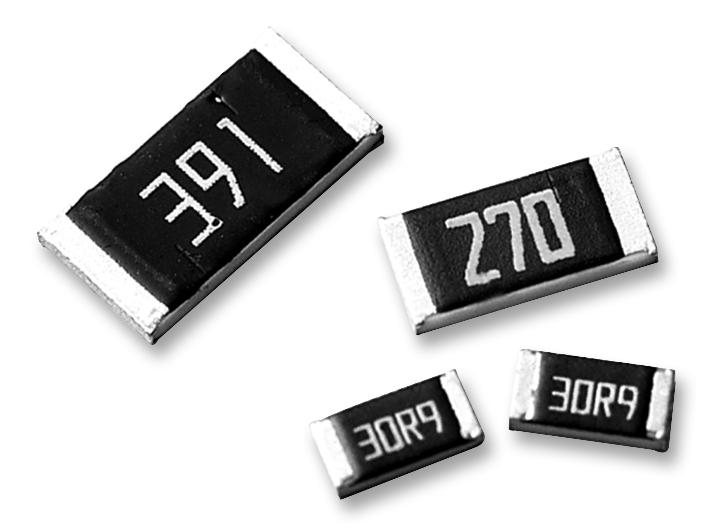

Buy the YAGEO RE0603 U–Reliable Surface Mount Resistors for Industrial Applications
Discover YAGEO surface mount chip resistors in sizes 0402 to 1206, designed for high-reliability industrial and electronic applications. These RoHS-compliant, halogen-free resistors offer precise tolerances and low TCR for stable performance across wide temperature ranges. With ceramic construction, lead-free Ni/tin terminations, and rated for up to 200V overload voltage, they ensure long-lasting durability and space-saving designs. Ideal for high-performance electronics requiring environmental compliance, these resistors provide excellent electrical stability and reliability for professional industrial manufacturing and electronic device production.
Get YAGEO RE0603 today—built for precision, high reliability, and environmentally friendly performance in demanding electronic and industrial applications.
Frequently Asked Questions
Where can I buy YAGEO RE0603DRE07100KL?
You can click on the BUY or RFQ button to purchase RE0603DRE07100KL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RE0603DRE07100KL?
You can download the RE0603DRE07100KL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RE0603DRE07100KL?
YAGEO
