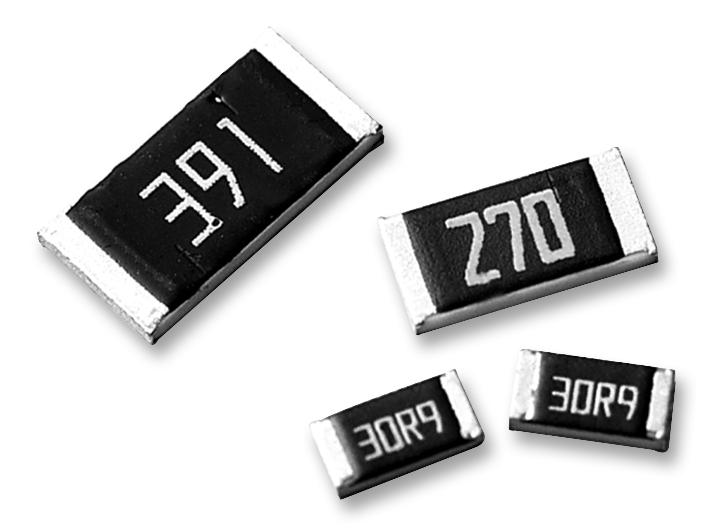

YAGEO RE0603DRE07150RL Surface Mount Chip Resistor
YAGEO's RE Series thick film chip resistors in sizes 0402 to 1206 are RoHS compliant and halogen-free, designed for general purpose applications. These high-reliability surface mount resistors feature ultra-precision tolerance and low TCR, ensuring stable performance across various environments. They have lead-free terminations, are constructed on high-grade ceramic with resistive glaze and protective overcoat, and are ideal for compact electronic assemblies seeking environmentally friendly solutions. Suitable for diverse industrial and consumer electronic applications, these resistors provide excellent durability and consistent electrical characteristics.
YAGEO RE0603DRE07150RL Surface Mount Chip Resistor Specifications:
- Size: 0402, 0603, 0805, 1206
- Material: Ceramic with resistive glaze and protective overcoat
- Lead-Free Terminations: Nickel/matte tin
- RoHS Compliant and Halogen Free
- Resistance Range: 102 to 1MΩ
- Tolerance: +1% or +0.5%
- Temperature Coefficient of Resistance: +50 ppm/T
- Operating Temperature: -55°C to +155°C
- Maximum Working Voltage: 50V to 200V depending on size
- Rated Power: 0402=1/16 W; 0603=1/10 W; 0805=1/8 W; 1206=1/4 W
- Dimensions vary per size, e.g., 0402 length 1.00 mm, width 0.50 mm
- High reliability for general purpose electronic applications
- Available in reel packaging of 7, 10, and 13 inches, varying quantities
- Recommended soldering and mounting profiles provided for optimal assembly
- Tested for durability, moisture resistance, shock, and solderability.
Buy the YAGEO Series RE Chip Resistors: RE0603DRE07150RL
Purchase your YAGEO Series RE0603 surface mount resistor online today and benefit from high precision, RoHS compliance, and halogen-free construction. These resistors are designed for dependable performance in a variety of general electronic applications. With sizes ranging from 0402 to 1206 and resistance values up to 1MΩ, they provide excellent reliability, low TCR, and environmental friendliness. Easy to mount and suitable for dense PCB layouts, these resistors are ideal for both industrial and consumer electronics, offering long-lasting durability and consistent electrical behavior.
Order your YAGEO Series RE0603 resistor today and ensure reliable, environmentally friendly performance for your electronic projects.
Frequently Asked Questions
Where can I buy YAGEO RE0603DRE07150RL?
You can click on the BUY or RFQ button to purchase RE0603DRE07150RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RE0603DRE07150RL?
You can download the RE0603DRE07150RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RE0603DRE07150RL?
YAGEO
