YAGEO RE0603DRE072K2L Chip Resistor
These ultra-precision thick film surface-mount chip resistors from the RE series are RoHS compliant and halogen free, designed for general applications. Constructed on a high-grade ceramic body with resistive glaze and protected by a glass overcoat, they feature low TCR of +50 ppm/T and various resistance values matching industry standards. Available in sizes from 0402 to 1206, these resistors support high reliability, environmentally friendly manufacturing, and space-saving designs. They are suitable for precise electronics, offering stability over temperature and voltage conditions, making them ideal for diverse industrial and commercial electronic circuits.
YAGEO RE0603DRE072K2L Chip Resistor Specifications:
- Size options: 0402, 0603, 0805, 1206
- Resistance range: 102 to 1MΩ
- Tolerance: ±1% (F), ±0.5% (D)
- Temperature Coefficient of Resistance: +50 ppm/T
- Operating Temperature Range: -55°C to +155°C
- Maximum Working Voltage: 50V to 200V depending on size
- Maximum Overload Voltage: 100V to 400V
- Dielectric Withstanding Voltage: 100V to 500V
- Power Ratings: RE0402=1/16 W, RE0603=1/10 W, RE0805=1/8 W, RE1206=1/4 W
- Construction: Ceramic body with resistive glaze, Ni/matte tin terminations
- Dimensions: Length from 1.00 mm to 3.10 mm, width from 0.50 mm to 1.60 mm, height from 0.32 mm to 0.55 mm
- RoHS and halogen free, suitable for environmentally conscious manufacturing
- Packaging: Paper taping reels of 5,000 to 50,000 units based on size

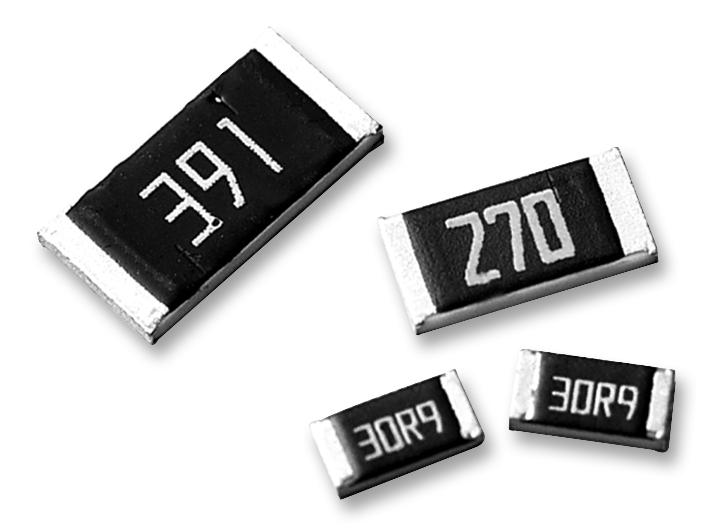

Buy the YAGEO Series RE Chip Resistors: RE0603
Purchase the YAGEO Series RE0603 chip resistors online today to benefit from environmentally friendly, RoHS compliant components with ultra-precision, low TCR, and high reliability. These surface-mount resistors are ideal for a wide range of general purpose electronic applications requiring space-saving, stable performance across temperature and voltage variations. With various resistance values and sizes from 0402 to 1206, they fit perfectly into your PCB designs, offering long-term durability, consistent quality, and easy ordering from our secure online platform. Equip your electronics with trusted, high-performance resistors now!
Order your YAGEO Series RE0603 environmental-friendly chip resistor today and ensure high reliability and space efficiency for your electronic projects.
