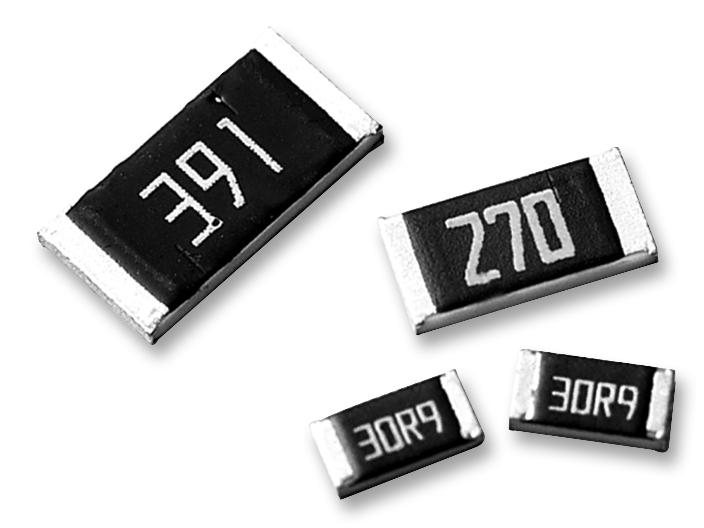

YAGEO RE0603DRE07330RL Surface Mount Resistor
These high-reliability thick film chip resistors from the RE Series are RoHS compliant and halogen-free, designed for general purpose applications. Constructed on a ceramic body with resistive glaze and laser trimming, they offer ultra-precision tolerance and low TCR of +50 ppm/T. Available sizes range from 0402 to 1206 with resistance values from 102 to 1MΩ. They feature lead-free Ni/tin terminations, excellent durability, and environmentally friendly manufacturing. Suitable for space-constrained circuit designs, these reliable resistors ensure consistent performance under various electrical and thermal conditions.
YAGEO RE0603DRE07330RL Surface Mount Resistor Specifications:
- Sizes: 0402, 0603, 0805, 1206
- Resistance Range: 102 to 1MΩ
- Tolerance: +1%/ +0.5%
- Temperature Coefficient of Resistance: +50 ppm/T
- Maximum Working Voltage: 50V to 200V depending on size
- Operating Temperature Range: -55°C to +155°C
- Construction: Ceramic substrate, resistive glaze with laser trimming, Ni/tin termination
- Dimensions (L x W x H): 1.00x0.50x0.324 mm (0402), 1.60x0.80x0.45 mm (0603), 2.00x1.25x0.50 mm (0805), 3.10x1.60x0.55 mm (1206)
- Power Ratings: 1/16 W (0402), 1/10 W (0603), 1/8 W (0805), 1/4 W (1206)
- RoHS Compliant & Halogen Free
- Packaged on paper taping reels: 7" (10,000 pcs), 10" (20,000 pcs), 13" (50,000 pcs)
Buy the YAGEO Series RE Chip Resistor: RE0603
Purchase the YAGEO Series RE0603 surface mount resistor online today and benefit from high precision, low TCR, and environmentally friendly lead-free construction. These resistors are ideal for space-constrained electronics with resistance values from 102 to 1MΩ, offering a tolerance of +1% and a temperature coefficient of +50 ppm/T. Manufactured on RoHS compliant, halogen-free ceramic bodies, they ensure durable, consistent circuit performance. Available in various reel sizes with high packaging capacity, order now to enhance your projects’ reliability and compliance.
Order your YAGEO Series RE0603 chip resistor today and ensure your electronic circuits with reliable, precision resistors designed for demanding environments.
Frequently Asked Questions
Where can I buy YAGEO RE0603DRE07330RL?
You can click on the BUY or RFQ button to purchase RE0603DRE07330RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RE0603DRE07330RL?
You can download the RE0603DRE07330RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RE0603DRE07330RL?
YAGEO
