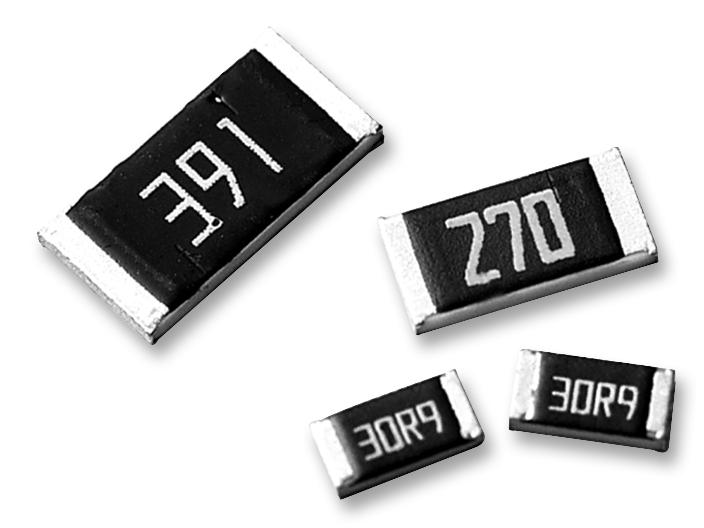

YAGEO RE0603DRE07680KL Chip Resistor Surface Mount
YAGEO's ultra precision thick film chip resistors, series RE, accommodate sizes from 0402 to 1206, and are RoHS compliant and halogen free. Crafted on high-grade ceramic, these surface mount resistors feature lead-free Ni/tin terminations, offering high reliability, low TCR (+50 ppm/T), and environmental friendliness. They are ideal for general purpose applications, providing space-saving design, stable resistance values, and excellent electrical performance over a wide operating temperature range of -55°C to +155°C. Various resistance values and packaging options ensure flexible use in electronic assemblies and manufacturing processes.
YAGEO RE0603DRE07680KL Chip Resistor Surface Mount Specifications:
- Size: 0402, 0603, 0805, 1206
- Resistance Range: 102Ω to 1MΩ
- Tolerance: ±1% or ±0.5%
- Temperature Coefficient: +50 ppm/T
- Operating Temperature Range: -55°C to +155°C
- Maximum Working Voltage: 50V (0402/0603), 150V (0805), 200V (1206)
- Maximum Overload Voltage: 100V (0402/0603), 300V (0805), 400V (1206)
- Dielectric Withstanding Voltage: 100V (0402/0603), 300V (0805), 500V (1206)
- Power Rating: 1/16 W (0402), 1/10 W (0603), 1/8 W (0805), 1/4 W (1206)
- Dimensions (L×W×H): 1.00×0.50×0.324 mm (0402), 1.60×0.80×0.45 mm (0603), 2.00×1.25×0.50 mm (0805), 3.10×1.60×0.55 mm (1206)
- Construction: High-grade ceramic body, resistive glaze, laser trimming, nickel/tin terminations
- Environmental: RoHS compliant, halogen free, reducing hazardous wastes
- Packaging: Paper taping reels of varying dimensions, up to 50,000 units
Buy the Buy YAGEO Chip Resistor Surface Mount Part Number RE0603DRE07680KL Online
Purchase YAGEO RE series chip resistors online for high-quality, RoHS compliant, halogen free solutions. These surface mount components deliver excellent electrical stability, environmental friendliness, and space-saving design, making them ideal for all general purpose electronic applications. Available in multiple sizes and resistance values, they comply with strict environmental standards and are suitable for automated assembly. Buy now to enhance your manufacturing process with reliable, precision resistors that meet international quality and environmental standards.
Buy YAGEO RE0603DRE07680KL now and ensure high reliability with precise resistance values in your electronic designs.
