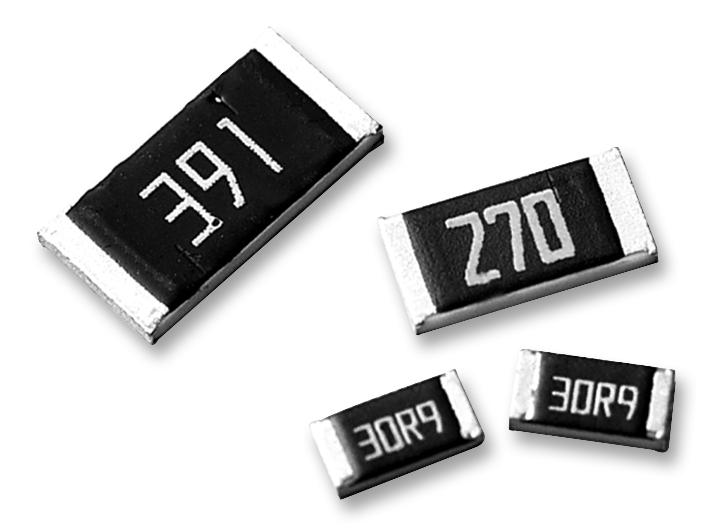

YAGEO RE1206DRE0722RL Surface Mount Chip Resistor
These high-precision surface mount chip resistors from the RE series are designed for reliable electronic applications. Constructed on high-grade ceramic with resistive glaze and laser trimming, they offer ultra precision, low TCR, RoHS compliance, and halogen-free features. Available in sizes from 0402 to 1206, they provide tolerance options of ±1% or ±0.5%, with a wide resistance range from 102 to 1MΩ. Suitable for all general-purpose electronics, these resistors ensure high component reliability, space-saving design, and excellent electrical performance under various conditions.
YAGEO RE1206DRE0722RL Surface Mount Chip Resistor Specifications:
- Size: 0402/0603/0805/1206
- Resistance Range: 102 to 1MΩ
- Tolerance: ±1% or ±0.5%
- Temperature Coefficient: +50 ppm/T
- Operating Temperature: -55°C to +155°C
- Maximum Working Voltage: 50V to 200V depending on size
- Maximum Overload Voltage: 100V to 400V
- Dielectric Withstanding Voltage: 100V to 500V
- Power Rating: 1/16 W (0402), 1/10 W (0603), 1/8 W (0805), 1/4 W (1206)
- Dimensions: RE0402 - L 1.00 mm, W 0.50 mm; RE0603 - L 1.60 mm, W 0.80 mm; RE0805 - L 2.00 mm, W 1.25 mm; RE1206 - L 3.10 mm, W 1.60 mm
- Construction: Ceramic body with internal metal electrodes and resistive glaze, covered with protective overcoat, with Ni/matte tin terminations
- Material: High-grade ceramic, resistive glaze, Ni/tin termination
- RoHS and halogen free compliance
- Marking: 3 digits for resistance value, no marking for 0402, 0603, 0805 sizes
Buy the Buy YAGEO Chip Resistor Surface Mount Part Number RE1206DRE0722RL Online
Enhance your electronic designs with YAGEO surface mount chip resistors from the RE series. These resistors offer ultra precision, low TCR, and robust construction. Available in sizes from 0402 to 1206, they are RoHS compliant and halogen free, ensuring environmentally friendly manufacturing. Perfect for all general-purpose applications, they deliver reliable electrical performance, high component reliability, and space-saving design. Easily order online and ensure your project benefits from YAGEO's quality and durability in resistor components.
Buy YAGEO RE1206DRE0722RL now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy YAGEO RE1206DRE0722RL?
You can click on the BUY or RFQ button to purchase RE1206DRE0722RL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RE1206DRE0722RL?
You can download the RE1206DRE0722RL datasheet or visit the YAGEO website for support.
Who is the manufacturer of RE1206DRE0722RL?
YAGEO
