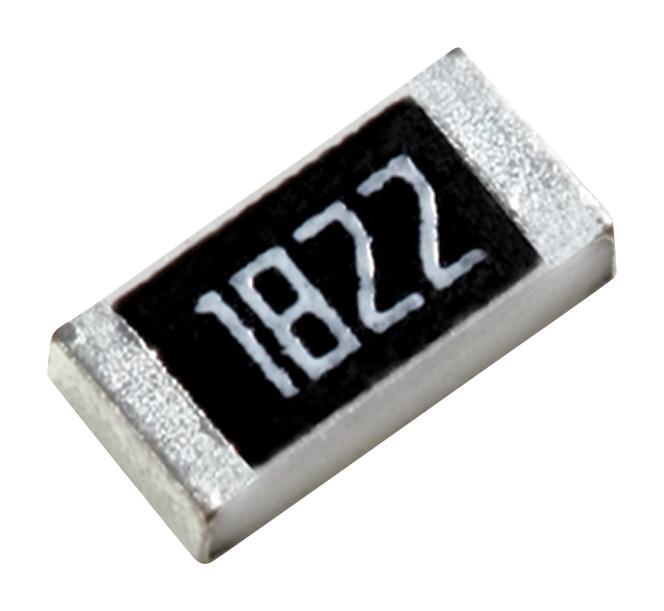

YAGEO RL0805FR7W0R22L Chip Resistor
The resistor is a surface-mount chip resistor suitable for high-reliability applications including converter, printer equipment, server boards, telecom, consumer electronics, and automotive electronics. Made with thick film process and lead-free terminations, it features RoHS compliance, halogen-free epoxy, and high component reliability. The ceramic body construction ensures durability, and the resistor offers a low resistance range with tolerance options. Ideal for current sensing with a compact size and RoHS, Halogen Free, and hazardous waste-friendly features, it provides excellent electrical performance in various environments.
YAGEO RL0805FR7W0R22L Chip Resistor Specifications:
- Size: 0805, 1210, 1218, 2010, 2512
- Resistance Range: 0.01 to 10,000 MΩ
- Tolerance: 1%, 2%, 5%
- Package Type: Taping reel of 7 or 13 inches, embossed or paper
- Construction: High-grade ceramic body with resistive paste and metal electrodes
- Temperature Range: -55°C to +155°C (normal power), -55°C to +125°C (double power)
- Power Rating: 1/16 W (RLO402), 1/10 W (RLO603), 1/8 W-1/4 W (RLO805), 1/4 W-1/2 W (LPI206), 1/2 W (LPI210), 1 W (LPI218), 3/4 W (RL2010), 1 W (RL2512)
- RoHS Compliant, Halogen Free, Suitable for SMD mounting
- Rated Voltage: Calculated using V = √(P x R), depending on resistance and power
- Operating Temperature: -55°C to +155°C with rated power, -55°C to +125°C with double power
- Electrical Testing: Life endurance, high-temperature exposure, moisture resistance, thermal shock, solderability, and soldering heat tests according to IEC and MIL standards
- Marking: Resistors marked with significant digits indicating value; R as decimal point in E-24 series
Buy the Buy YAGEO Chip Resistor Part Number RL0805FR7W0R22L Online
Purchase the high-quality YAGEO chip resistor RL0805FR7W0R22L online today. This surface-mount resistor is suitable for various applications, including converters, printers, servers, telecom, consumer devices, and automotive electronics. Made with thick film process, RoHS compliant, halogen-free epoxy, and constructed from durable ceramic, it offers low resistance, high reliability, and excellent electrical performance. Available in multiple sizes and resistance ranges, it’s ideal for current sensing and space-saving designs. Order now for fast delivery and trusted quality for your electronics!
Order your YAGEO Series RL0805FR7W0R22L resistor today and enhance your electronic projects with our reliable, RoHS-compliant surface-mount components.
Frequently Asked Questions
Where can I buy YAGEO RL0805FR7W0R22L?
You can click on the BUY or RFQ button to purchase RL0805FR7W0R22L from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RL0805FR7W0R22L?
You can download the RL0805FR7W0R22L datasheet or visit the YAGEO website for support.
Who is the manufacturer of RL0805FR7W0R22L?
YAGEO
