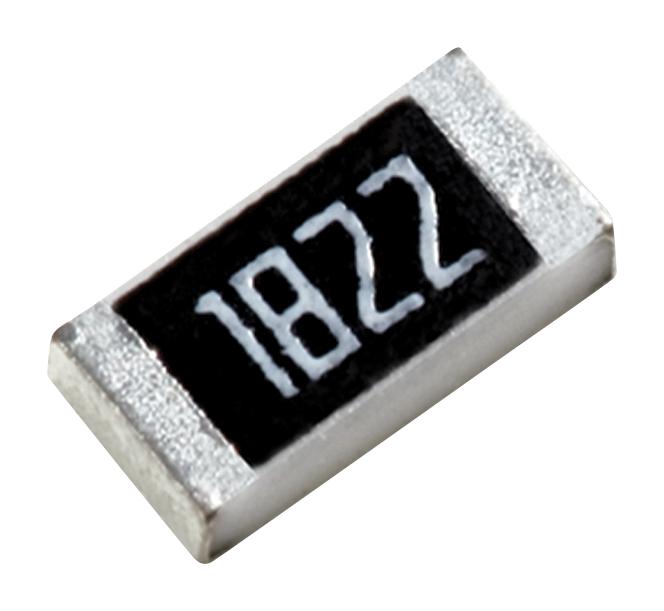

YAGEO RL0805FR7W0R47L Surface Mount Chip Resistor
The RL0805 chip resistor features a compact surface mount design with low resistance options, RoHS compliance, and halogen-free epoxy. Suitable for high-reliability applications such as converters, printers, server boards, telecom, consumer electronics, and automotive electronics. It offers high reliability, space-saving design, and precise resistance values with tolerance classes of 1%, 2%, and 5%. Constructed with ceramic substrates, internal electrodes, and resistant paste, these resistors meet industry standards, including AEC-Q200 qualification, ensuring performance in harsh environments. Various sizes from 0402 to 2512 are available for diverse electronic applications.
YAGEO RL0805FR7W0R47L Surface Mount Chip Resistor Specifications:
- Sizes available: 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512
- Resistance range: 0.01Ω to 10MΩ
- Tolerance: 1%, 2%, 5%
- Power rated: RLO402=1/16 W, RLO603=1/10 W, RLO805=1/8 W or 1/4 W, RLI206=1/4 W or 1/2 W, RLI210=1/2 W, RLI218=1 W, RL2010=3/4 W, RL2512=1 W
- Temperature coefficient: Based on spec, with T.C.R. typical values below 1500 ppm/°C
- Operating temperature range: -55°C to +155°C
- RoHS compliant and halogen-free epoxy construction
- Construction: Ceramic substrate with resistive paste and external tin terminations
- Dimensions: Length varies with size, e.g., 1.004-5.00 mm, Width up to 2.60 mm, Height up to 0.60 mm
Buy the YAGEO Series RL Resistor: RL0805FR7W0R47L
Purchase the YAGEO Series RL0805FR7W0R47L surface mount chip resistor online today to enhance your electronic design with high reliability, RoHS compliance, and precise resistance. Ideal for applications in automotive electronics, telecom, consumer devices, and high-density circuit boards, this resistor offers excellent durability and space-saving benefits. Choose from various sizes and tolerance classes, including 1%, 2%, and 5%, ensuring your project’s performance requirements are met. Order now for fast delivery and professional support to keep your manufacturing on schedule.
Order your YAGEO Series RL0805FR7W0R47L chip resistor today and ensure reliable performance in your critical electronic projects.
Frequently Asked Questions
Where can I buy YAGEO RL0805FR7W0R47L?
You can click on the BUY or RFQ button to purchase RL0805FR7W0R47L from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RL0805FR7W0R47L?
You can download the RL0805FR7W0R47L datasheet or visit the YAGEO website for support.
Who is the manufacturer of RL0805FR7W0R47L?
YAGEO
