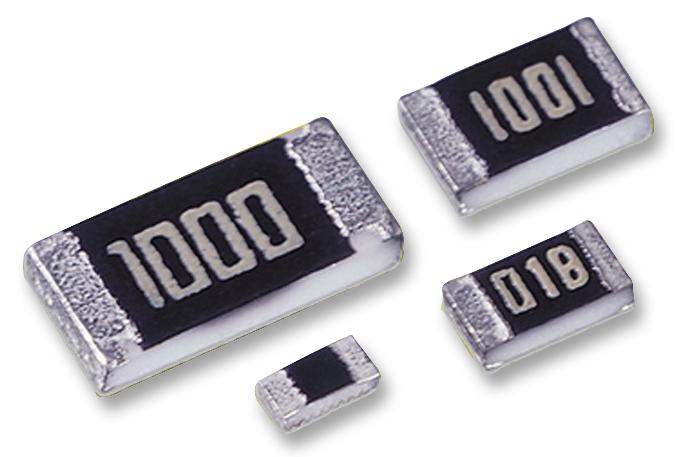

YAGEO RT0805FRE073K3L Surface Mount Chip Resistor
High precision surface mount chip resistor series designed for high stability and reliability in electronic circuits. Constructed with a ceramic body, internal metal electrodes, and protected by a conductive coating, these resistors feature RoHS compliance and lead-free terminations. Available in sizes from 0201 to 2512, they offer different resistance values with tight tolerances, and are suitable for applications in converters, printer equipment, server boards, telecommunications, and consumer electronics. Their environmentally friendly design reduces hazardous waste while saving PCB space and ensuring high component reliability.
YAGEO RT0805FRE073K3L Surface Mount Chip Resistor Specifications:
- Sizes: 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Resistance Tolerance: +0.05%, +0.1%, +0.25%, +0.5%, +1%
- Temperature Coefficient: 5 ppm/°C to 50 ppm/°C
- Construction: Ceramic substrate with internal metal electrodes and resistive layer
- Body Material: High-grade ceramic
- Lead Finishing: Matte tin, lead-free
- Operating Temperature Range: -55°C to +125°C
- Power Ratings: RT0201=1/20W, RT0402=1/16W, RT0603=1/10W, RT0805=1/8W, RT1206=1/4W, RT1210/2010=1/2W, RT2512=3/4W
- Maximum Working Voltage: Up to 500V depending on size
- RoHS and Halogen Free compliance
- Packaging: Paper/PE taping reel or embossed reel, sizes vary from 7" to 13" dia.
- Marking: Resistance value in E-24 or E-96 series, with short bars for exception values
- Testing Standards: MIL-STD-202, IEC 60115, J-STD-002, IEC 60068-2-2, IEC 601 15-1
- Environmental and durability tests include temperature coefficient, life endurance, moisture resistance, thermal shock, humidity, overload, bending, insulation, dielectric withstand, solderability, resistance to soldering heat.
Buy the YAGEO Series RT Chip Resistor: RT0805FRE073K3L
Order YAGEO RT0805FRE073K3L surface mount chip resistor online today to ensure high stability and accuracy for your electronic projects. These RoHS-compliant, lead-free resistors come in various sizes and resistance tolerances, perfect for consumer electronics, telecom devices, and server boards. Enjoy quick delivery and reliable performance, backed by a trusted brand. Enhance your circuit design with these environmentally friendly resistors that save space and provide high component reliability. Shop now for quality and convenience.
Buy YAGEO RT0805FRE073K3L high precision chip resistor now and experience unmatched reliability and performance in your electronic designs.
Frequently Asked Questions
Where can I buy YAGEO RT0805FRE073K3L?
You can click on the BUY or RFQ button to purchase RT0805FRE073K3L from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part RT0805FRE073K3L?
You can download the RT0805FRE073K3L datasheet or visit the YAGEO website for support.
Who is the manufacturer of RT0805FRE073K3L?
YAGEO
