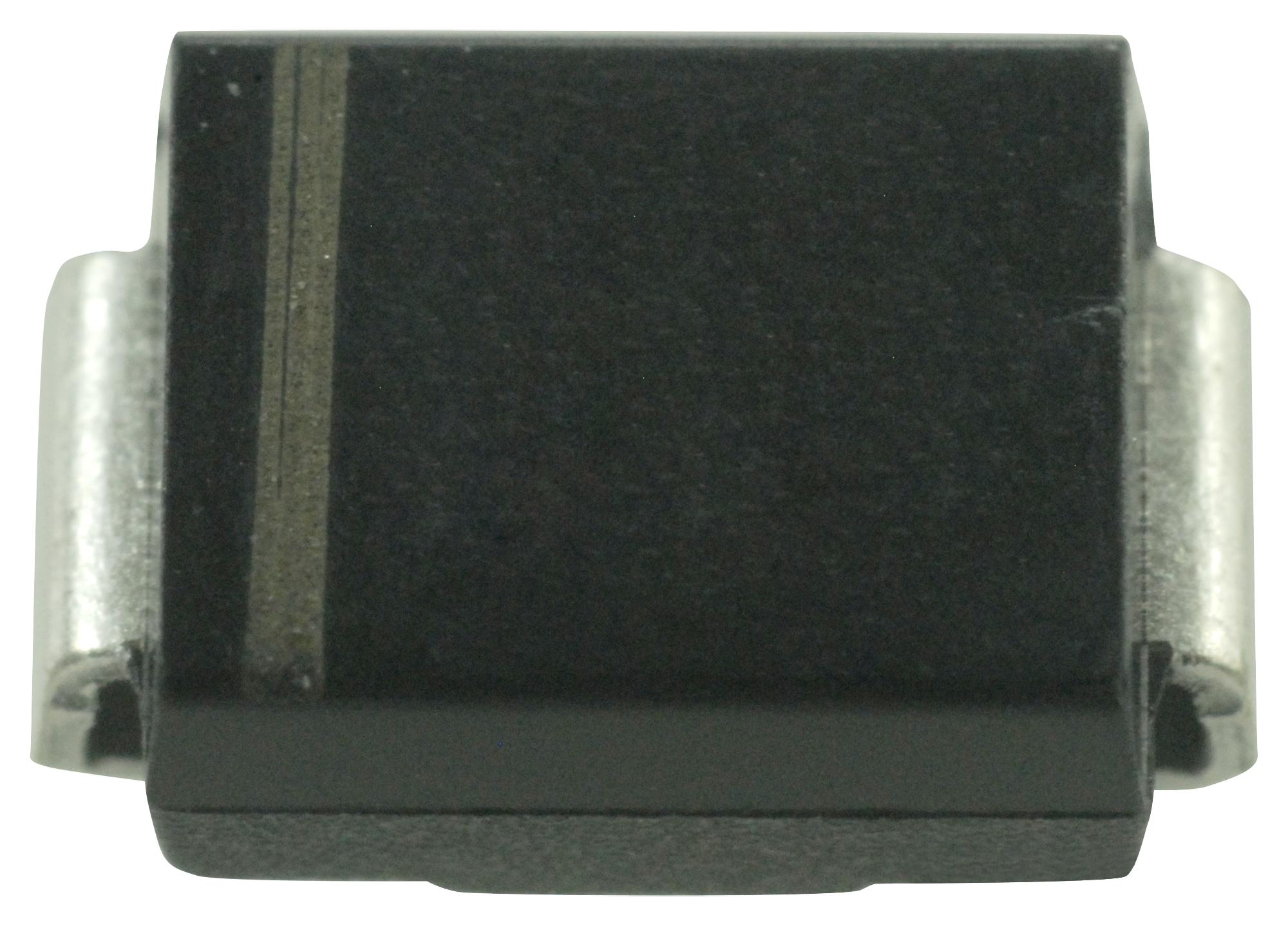

YAGEO SMAJ11ATR7 Transient Voltage Suppressor
This product is a transient voltage suppressor designed for surface mounted applications, offering low profile packaging and excellent clamping capability. It features a glass passivated junction, low inductance, and a peak pulse power capacity of 400W at 10/1000μs waveform, ensuring fast response times. Suitable for AC/DC power supplies and low-frequency signals, it meets safety and flammability standards with UL certification. The device operates within a temperature range of -65°C to +150°C, made with solderable termination for reliable connections.
YAGEO SMAJ11ATR7 Transient Voltage Suppressor Specifications:
- Peak pulse power dissipation: 400 Watts at 10/1000μs waveform
- Operating junction and storage temperature: -65°C to +150°C
- Peak pulse current: depends on model
- Maximum steady state power dissipation: 3.3 Watts at 50°C
- Package type: JEDEC DO-214AC molded plastic
- Solderable terminals: yes, solder plated per MIL-STD-750, Method 2026
- Maximum dimensions: length 4.50mm, width 2.79mm, height 1.65mm
- Insulation: Glass passivated junction, UL: E244458
- Application: AC/DC power supplies and signal lines
- Compliance: RoHS, Halogen free, MSL Level 1
- Response time: Fast, suitable for transient suppression
- Polarity: Marked with color band for cathode; bidirectional models available
Buy the YAGEO SMAJ11ATR7 – Reliable Transient Voltage Suppressor for Industrial Applications
Purchase the YAGEO SMAJ11ATR7 transient voltage suppressor online today. Designed for surface mounted applications, it offers 400W peak pulse power, fast response time, and excellent clamping capability. Ideal for AC/DC power supplies and signal transmission lines, this device ensures reliable circuit protection. With UL certification, RoHS compliance, and halogen-free construction, it is suitable for a wide range of industrial and electronic applications. Order now and enhance your circuit’s resilience against voltage spikes with a high-quality, durable transient suppressor.
Get YAGEO SMAJ11ATR7 today—built for precision and long-lasting durability in circuit protection solutions.
Frequently Asked Questions
Where can I buy YAGEO SMAJ11ATR7?
You can click on the BUY or RFQ button to purchase SMAJ11ATR7 from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part SMAJ11ATR7?
You can download the SMAJ11ATR7 datasheet or visit the YAGEO website for support.
Who is the manufacturer of SMAJ11ATR7?
YAGEO
