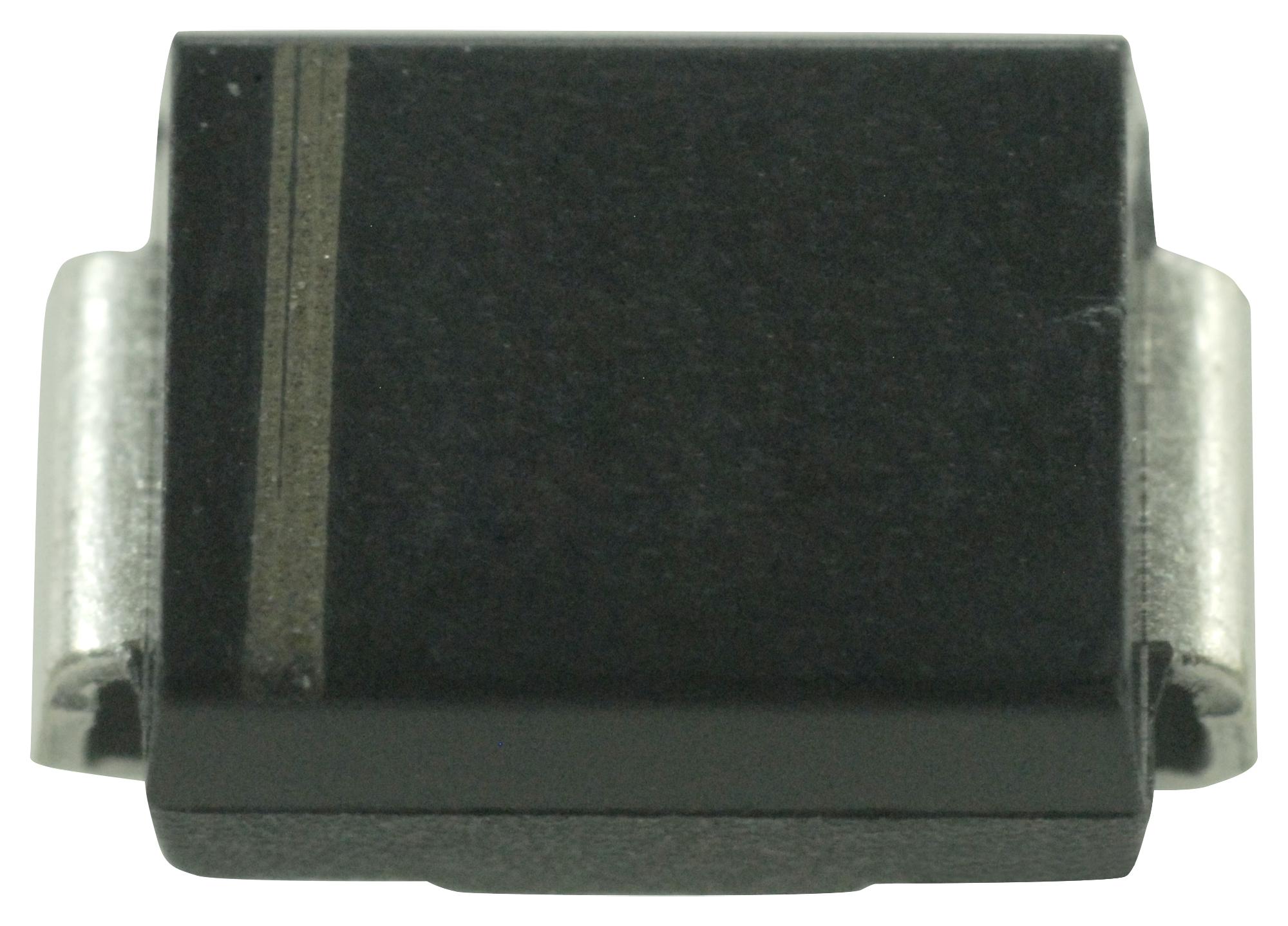

YAGEO SMAJ70ATR7 Transient Voltage Suppressor
The SMAJ70A is a bidirectional transient voltage suppressor designed to protect electronic circuits from voltage spikes and surges. With a stand-off voltage of 77.80 to 86.00V and a maximum working voltage of 86V, it features a peak pulse power dissipation of 400W at 10/1000s waveform. Its glass passivated junction ensures high reliability, complemented by a low inductance package for surface mounting. Suitable for AC/DC power supplies and interface protection, it operates within -65°C to +150°C temperatures and meets UL 94V-0 flammability standards, making it ideal for robust circuit protection applications.
YAGEO SMAJ70ATR7 Transient Voltage Suppressor Specifications:
- Peak pulse power: 400W at 10/1000s waveform
- Maximum stand-off voltage: 77.80 to 86.00V
- Reverse breakdown voltage: 85.0V typical
- Operating temperature range: -65°C to +150°C
- Glass passivated junction for high reliability
- Surface mount package, JEDEC DO-214AC
- UL: E244458 safety certified
- Solderable terminals, max junction temperature 150°C
- Low inductance and fast response time, ideal for surge protection
- RoHS compliant & halogen free
- Dimensions: length approximately 4.93-5.28mm, width 2.54-2.79mm, height 1.25-1.65mm
- Weight: 0.07g, packaged in tape for automated placement
Buy the YAGEO Series SMAJ Transient Voltage Suppressor: SMAJ70A
Secure your electronic circuits from voltage spikes with the YAGEO SMAJ70A bidirectional transient voltage suppressor. Featuring 86V maximum voltage and 400W pulse power, this device ensures reliable protection for AC/DC power supplies, communication lines, and low-frequency signal transmissions. Its glass passivated junction offers high reliability and fast response time. Product dimensions are compact at approximately 4.93-5.28mm in length, with solderable terminals designed for surface mounting. RoHS compliant, UL certified, and halogen free, it is ideal for applications demanding durability and safety.
Buy YAGEO SMAJ70A now and experience unmatched reliability and performance in surge protection for your electronic circuits.
Frequently Asked Questions
Where can I buy YAGEO SMAJ70ATR7?
You can click on the BUY or RFQ button to purchase SMAJ70ATR7 from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part SMAJ70ATR7?
You can download the SMAJ70ATR7 datasheet or visit the YAGEO website for support.
Who is the manufacturer of SMAJ70ATR7?
YAGEO
