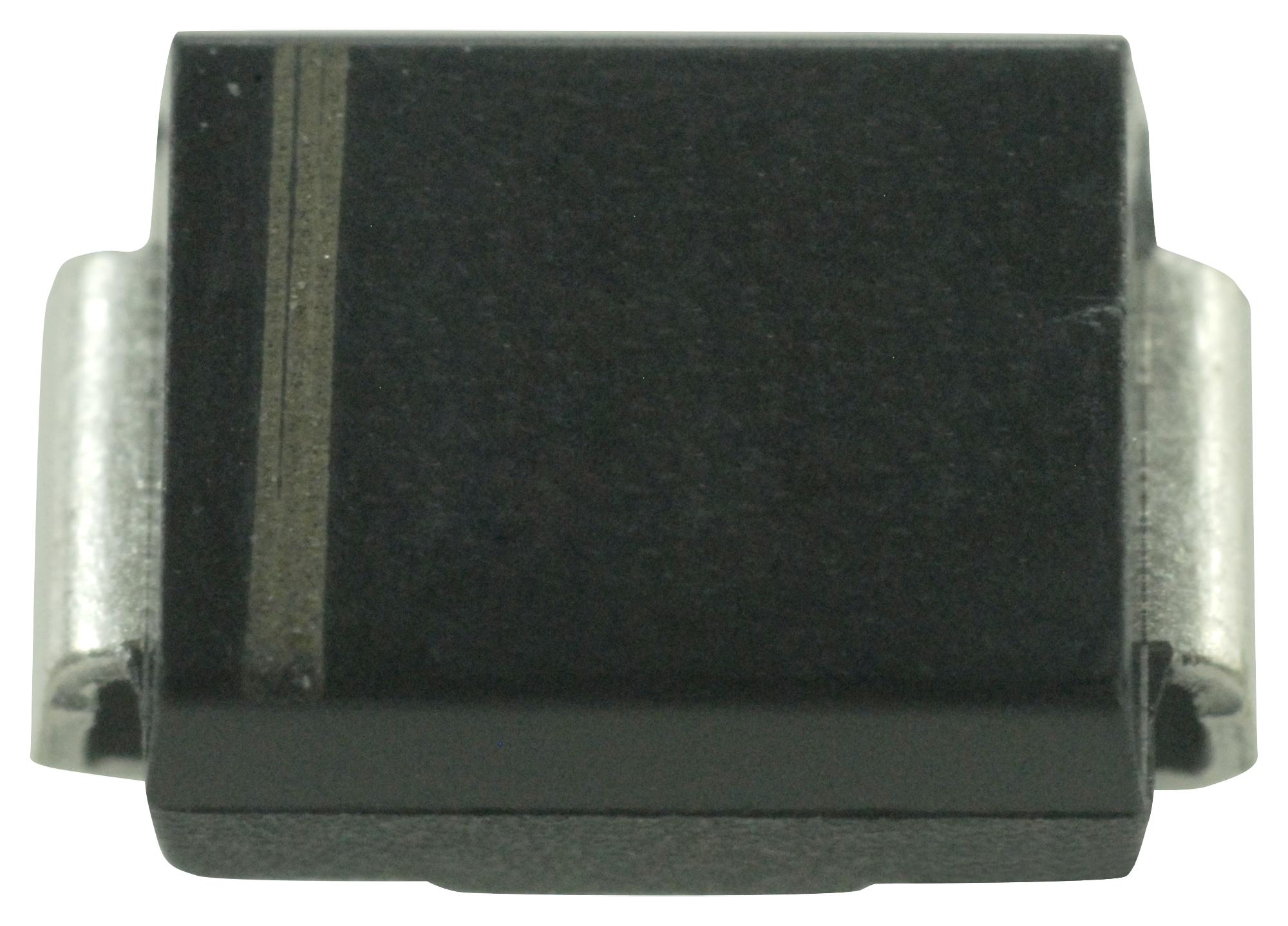

YAGEO SMBJ17ATR7 Transient Voltage Suppressor
The product is a surface-mount high-reliability transient voltage suppressor (TVS) designed for circuit protection in AC/DC power supplies and low-frequency signal transmission lines. Featuring a low profile package, glass passivated junction, and built-in strain relief, it offers excellent clamping capabilities with a peak pulse power capacity of 600W at 10/1000 microsecond waveform. Certified by UL and compliant with RoHS, it ensures safe and efficient operation in various electronic applications with fast response times and high temperature soldering compatibility.
YAGEO SMBJ17ATR7 Transient Voltage Suppressor Specifications:
- Peak Pulse Power: 600 Watts at 10/1000us waveform
- Peak pulse current: 137A at 10/1000us waveform
- Operating temperature: -65°C to +150°C
- Storage temperature: -65°C to +150°C
- Material: Glass passivated junction, molded plastic case
- Dimensions (CASE: JEDEC DO-214AA): Length 4.06-4.57 mm, Diameter 3.30-3.94 mm
- Weight: 0.10g
- Maximum Soldering Temperature: 260°C for 10 seconds
- Flammability: UL 94V-0
- Polarity: Color band indicates cathode, bidirectional models available
- Certification: UL E244458, RoHS compliant, Halogen free
- Electrical characteristics: Break down voltage 26V–250V depending on model, clamp voltage 28.90–247.00V
Buy the YAGEO SMBJ17ATR7 – Reliable Transient Voltage Suppressor for Industrial Applications
Secure your electronic systems with the YAGEO SMBJ17ATR7 transient voltage suppressor. Designed for circuit protection in power supplies and signal transmission, it offers 600W peak pulse power, UL certification, and RoHS compliance. Its compact surface-mount design ensures easy installation and optimal use of board space. With high-temperature soldering capability and excellent clamping performance, this TVS diode provides reliable, fast acting surge suppression. Perfect for industrial, automation, and communication applications, order online today for quick delivery and peace of mind.
Buy YAGEO SMBJ17ATR7 now and experience unmatched circuit protection with high pulse power and fast response suitable for industrial electronics.
Frequently Asked Questions
Where can I buy YAGEO SMBJ17ATR7?
You can click on the BUY or RFQ button to purchase SMBJ17ATR7 from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part SMBJ17ATR7?
You can download the SMBJ17ATR7 datasheet or visit the YAGEO website for support.
Who is the manufacturer of SMBJ17ATR7?
YAGEO
